3.6 L Model

1. Continuity test

   Inspect the continuity between the stator coil terminals. If continuity is not as shown in the table, replace the stator coil.

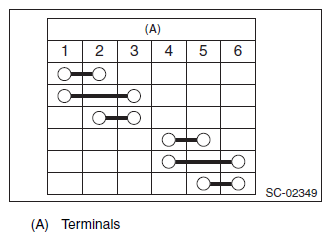

   Fig 1: Identifying Continuity Of Stator Coil Terminals

   Courtesy of SUBARU OF AMERICA, INC.

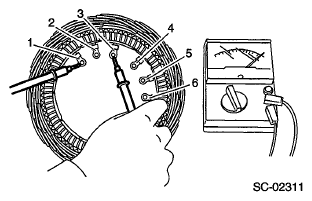

   Fig 2: Inspecting Continuity Between Stator Coil Terminals

   Courtesy of SUBARU OF AMERICA, INC.
2. Insulation test

Inspect the continuity between the stator coil stator core and lead wire terminals. If there is continuity, replace the stator coil because the stator coil is grounded.

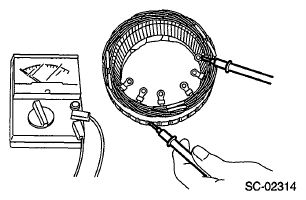

Fig 3: Inspecting Continuity Between Stator Coil Stator Core And Lead Wire Terminals
