Starting/Charging Systems (H4SO): Generator: Installation

Install in the reverse order of removal.

Tightening torque:

T1: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

T2: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

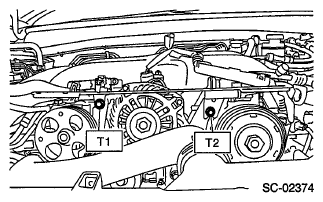

Fig 1: Locating Collector Cover Bracket Or V-Belt Cover Bracket Mounting Bolts

Courtesy of SUBARU OF AMERICA, INC.
