Starting/Charging Systems (H4SO): Generator: Removal

1. Disconnect the ground cable from battery.
   Fig 1: Disconnecting Ground Cable From Battery

   Courtesy of SUBARU OF AMERICA, INC.
2. Remove the V-belts. Refer to V-BELT . Refer to V-BELT . Refer to V-BELT .
3. Disconnect the connector and terminal from generator.

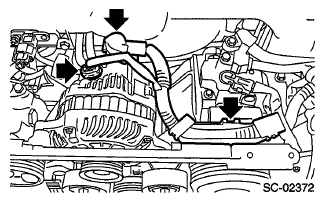

   Fig 2: Locating Generator Connector And Generator Terminal

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the collector cover bracket or v-belt cover bracket.

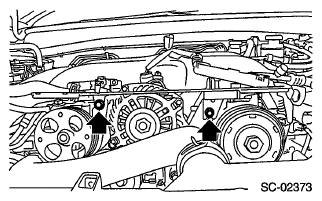

   Fig 3: Locating Collector Cover Bracket Or V-Belt Cover Bracket Mounting Bolts

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the generator from the bracket.

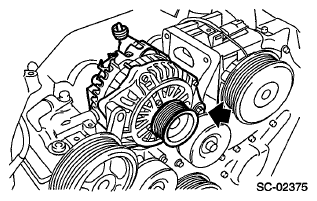

Fig 4: Locating Generator From Bracket

Courtesy of SUBARU OF AMERICA, INC.
