Disassembly Of Combination Meter Assembly
CAUTION:
- Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.
- Be careful not to apply excessive force to the trip knob.
- Be sure not to touch the meter indicator needle.

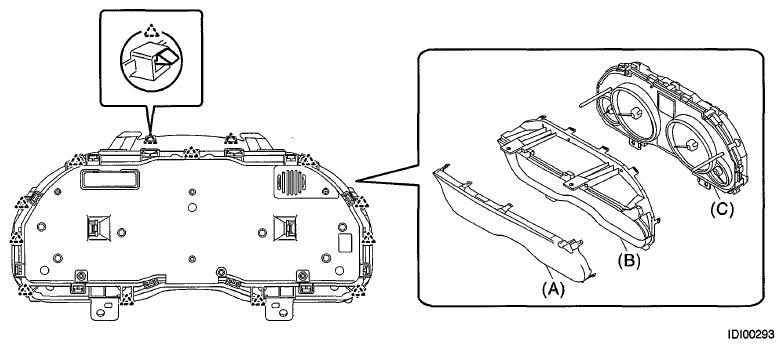

Disengage the claw, and remove the meter glass (A) and meter visor (B) from the meter case assembly (C).
