Combination Meter: Removal

Disconnect the ground cable from battery.
Remove the center panel assembly.
CAUTION: Do not put your finger on the fin of the air vent grille. Doing so may damage the fin.
1. Attach the protective tape (a) to the meter visor.

  Fig 1: Identifying Protective Tape
  Courtesy of SUBARU OF AMERICA, INC.
2. Insert a finger into the air vent grille and release the left and right clips at the top of the center panel. (A), (B)
3. Insert a finger into the air vent grille and release the left and right clips at the center of the center panel. (C), (D)
4. Release the clips at the bottom of the center panel and remove the center panel assembly.

  Fig 2: Removing Center Panel Assembly
  Courtesy of SUBARU OF AMERICA, INC.

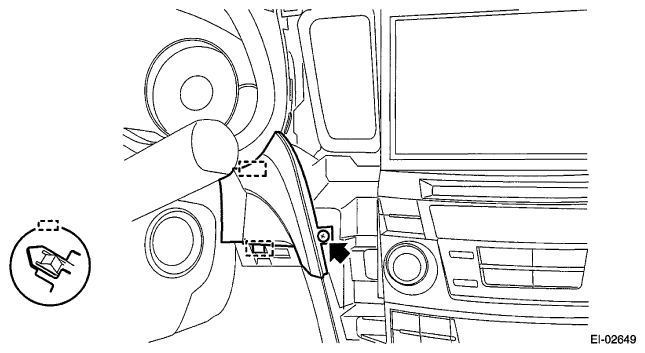

Remove the screw and release the claws, then detach the starter cover assembly.

Fig 3: Locating Starter Cover Assembly Screw
Courtesy of SUBARU OF AMERICA, INC.

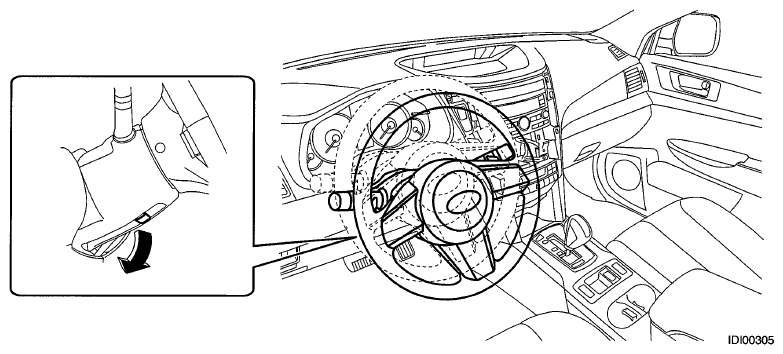

Release the lock, tilt the steering column to the lowest end and fully extend the column by the telescopic system.

Fig 4: Releasing Steering Column Lock
Courtesy of SUBARU OF AMERICA, INC.

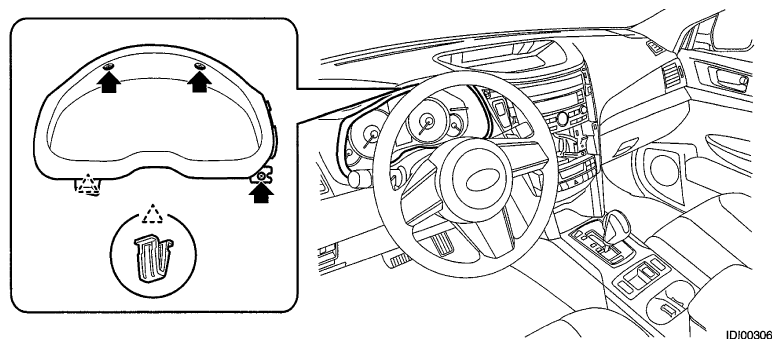

Release the screws and clips, then detach the meter visor assembly.

Fig 5: Locating Meter Visor Assembly Screws And Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the combination meter assembly.
CAUTION:
- Be careful not to damage the meter or instrument panel.
- Pay particular attention to avoid damaging the meter glass.

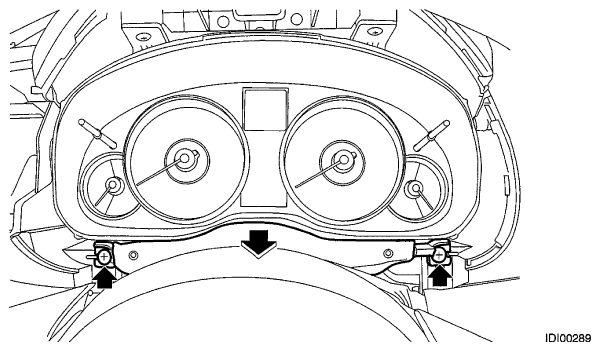

1. Remove the screws and move the steering COMPL upper cover toward you.

  Fig 6: Locating Steering Compl Upper Cover Screws
  Courtesy of SUBARU OF AMERICA, INC.

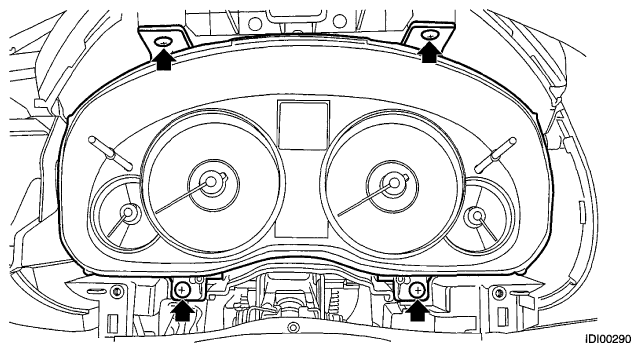

2. Remove the screws.

  Fig 7: Locating Combination Meter Assembly Screws
  Courtesy of SUBARU OF AMERICA, INC.

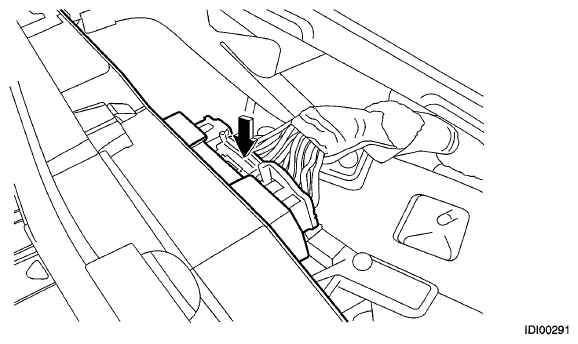

3. Pull the combination meter toward you and disconnect the connector.

  Fig 8: Locating Combination Meter Connector
  Courtesy of SUBARU OF AMERICA, INC.

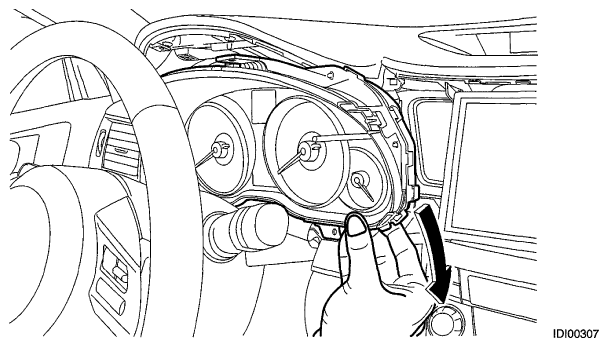

4. Remove the combination meter assembly as shown in the figure.

  Fig 9: Removing Combination Meter Assembly
  Courtesy of SUBARU OF AMERICA, INC.
