Components With Torque Specifications

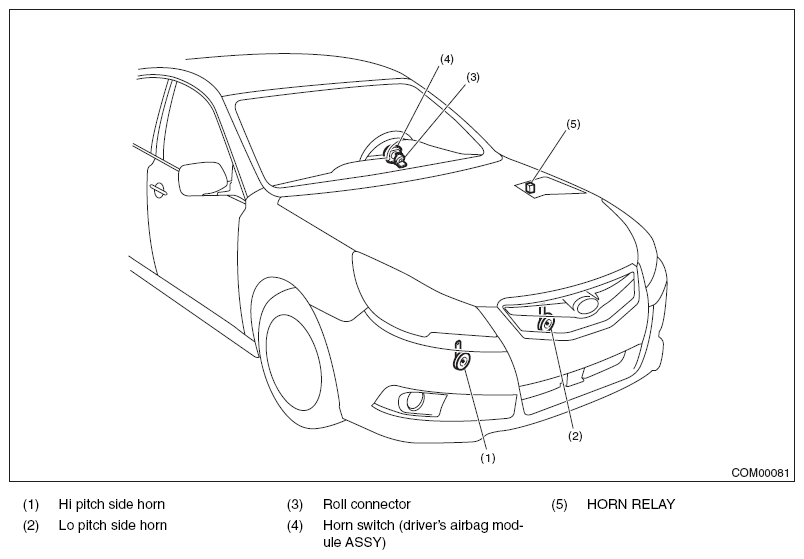

Fig 1: Identifying Roll Connector, Horn Relay And Horn Switch Location
G07916303Courtesy of SUBARU OF AMERICA, INC.
