Check Roll Connector

  1. Remove the roll connector. Refer to ROLL CONNECTOR .
  2. Measure the resistance between roll connector terminals.

    Preparation tool: Circuit tester

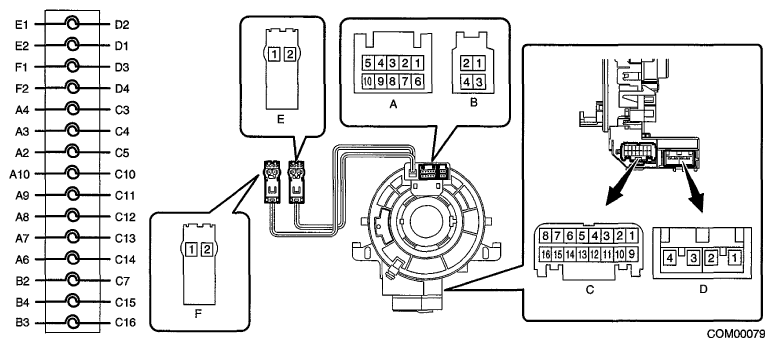

    Fig 1: Measuring Resistance Between Roll Connector Terminals
    G06653681Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection conditions Specification
    A10 - C10 Always Less than 1 Ω
  3. If it is out of the standard value by the inspection, replace the roll connector.
