Components With Torque Specifications: Generator

• 2.5 L model

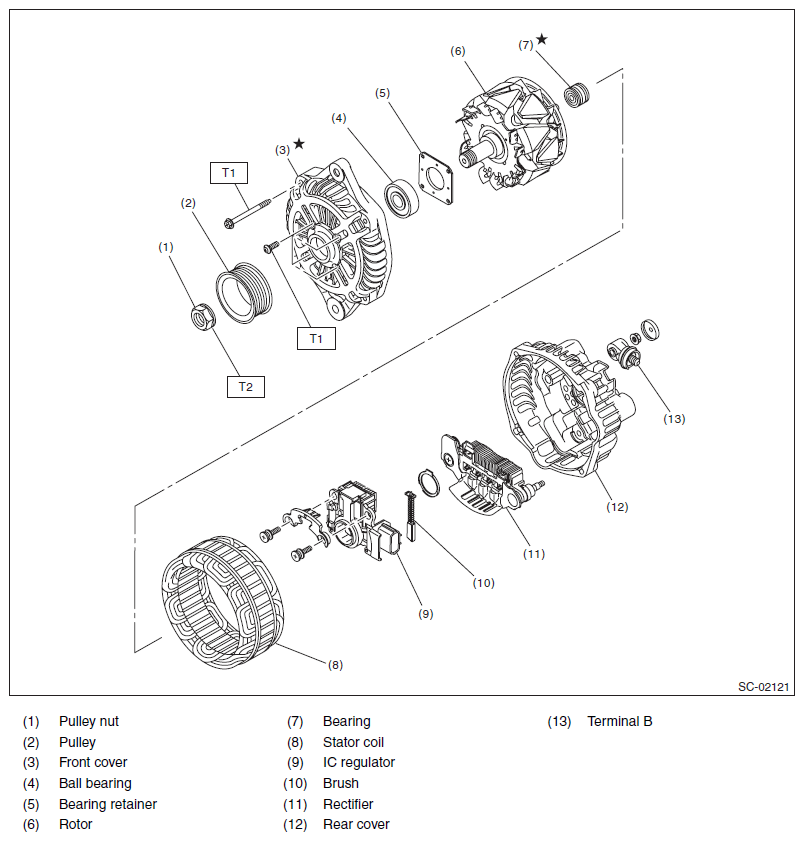

Fig 1: Exploded View Of Generator (2.5 L Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.7 (0.5, 3.5)

T2: 108 (11.0, 79.8)

• 3.6 L model

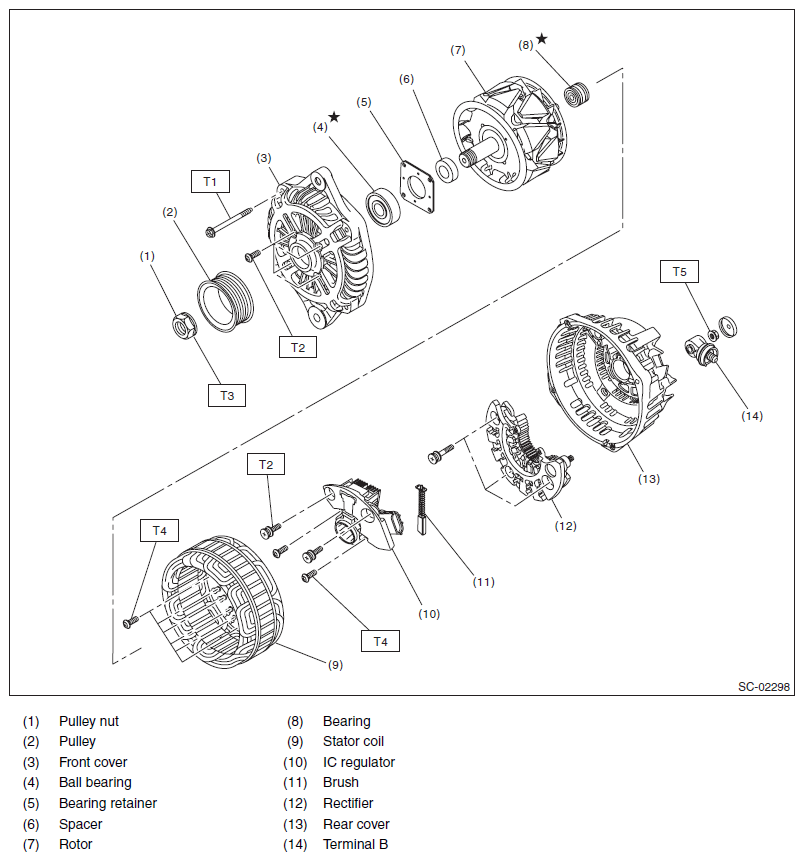

Fig 2: Exploded View Of Generator (3.6 L Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.4 (0.4, 3.2)

T2: 3.9 (0.4, 2.9)

T3: 117.5 (12.0, 86.7)

T4: 2 (0.2, 1.5)

T5: 8.9 (0.9, 6.6)
