Camshaft Position Sensor: Removal

Disconnect the ground cable from battery.

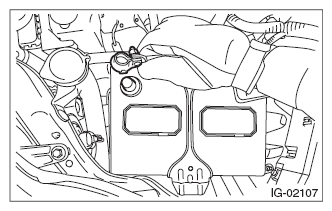

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from camshaft position sensor.

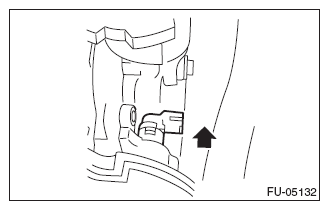

Fig 2: Locating Camshaft Position Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the ignition coil. (LH side only) Refer to IGNITION COIL .
Remove the bolt which secures camshaft position sensor to camshaft position sensor support.

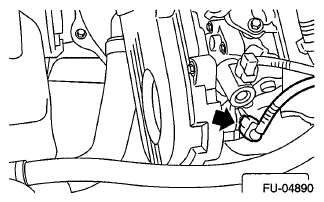

Fig 3: Locating Camshaft Position Sensor Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which secures camshaft position sensor support to camshaft cap LH.

Fig 4: Locating Camshaft Position Sensor Support Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the camshaft position sensor and the camshaft position sensor support as a unit.
NOTE: Slide in the arrowed direction until the camshaft position sensor contacts the rocker cover LH.

Fig 5: Removing Camshaft Position Sensor And Camshaft Position Sensor Support
Courtesy of SUBARU OF AMERICA, INC.
Remove the camshaft position sensor from the camshaft position sensor support.

Fig 6: Identifying Camshaft Position Sensor And Camshaft Position Sensor Support

Courtesy of SUBARU OF AMERICA, INC.
