EGR Valve: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G07909694Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the multi-function duct assembly. Refer to MULTI-FUNCTION DUCT ASSEMBLY , REMOVAL, Intake Manifold.
  3. Remove the EGR valve from the multi-function duct assembly.

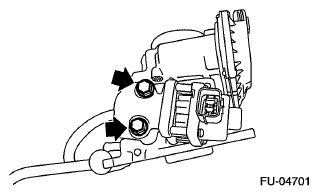

Fig 2: Locating EGR Valve Bolts
G06648318Courtesy of SUBARU OF AMERICA, INC.
