Fuel Injector: Installation

Install in the reverse order of removal.

NOTE: Use new O-rings, rubbers and seal rings.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

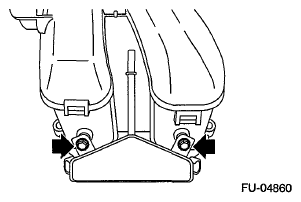

Fig 1: Locating Fuel Gallery RH And Fuel Injector Bolts

G06648258

Courtesy of SUBARU OF AMERICA, INC.
