Fuel Tank

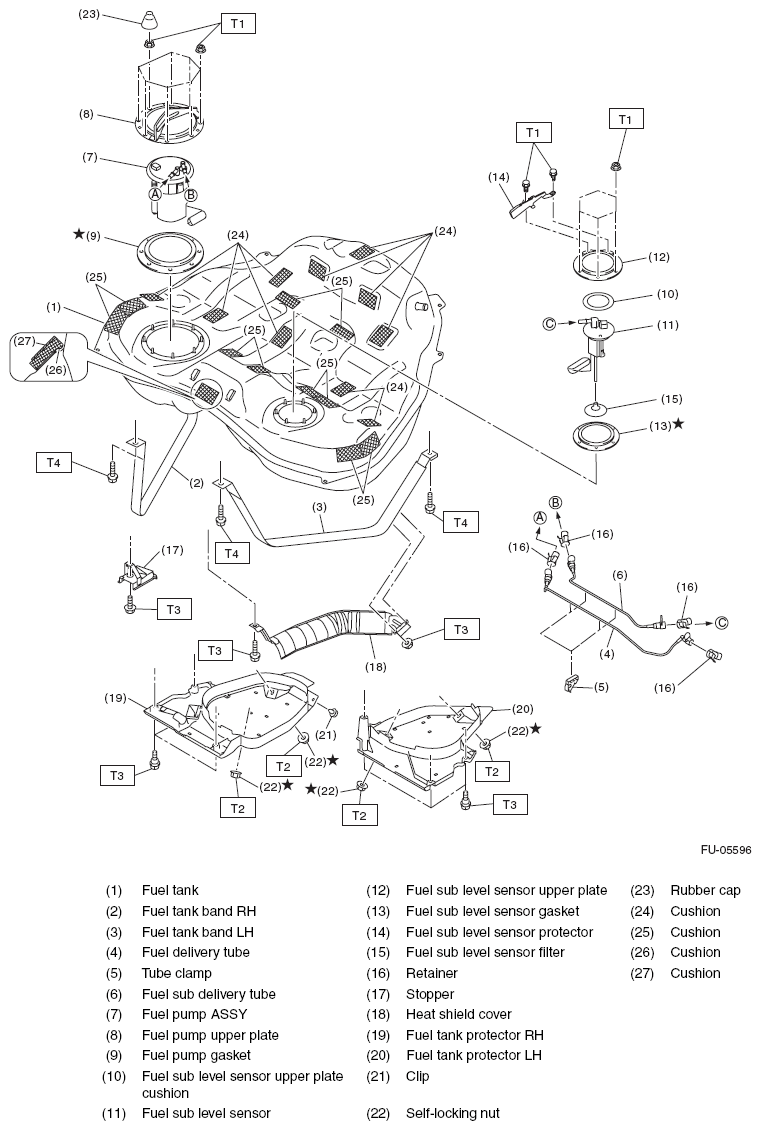

Fig 1: Exploded View Of Fuel Tank With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 4.4 (0.4, 3.2)
T2: 9 (0.9, 6.6)
T4: 33 (3.4, 24.3)
