Knock Sensor: Removal

Disconnect the ground cable from battery.

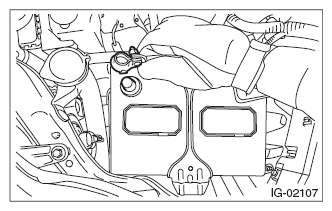

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot assembly. Refer to AIR INTAKE BOOT .
Disconnect the knock sensor connector.

Fig 2: Locating Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the knock sensor from cylinder block.

Fig 3: Identifying Knock Sensor Bolt

Courtesy of SUBARU OF AMERICA, INC.
