Main Relay: Removal

  1. Disconnect the ground cable from battery.

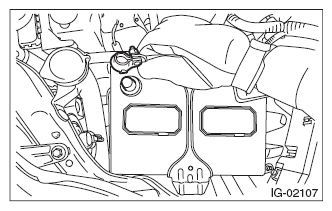

    Fig 1: Disconnecting Ground Cable From Battery
    G07909725Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the glove box lid assembly. Refer to GLOVE BOX
  3. Remove the main relay from the relay holder.

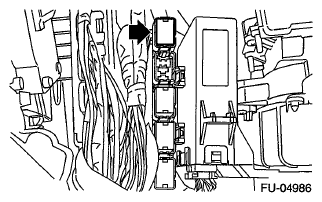

Fig 2: Locating Main Relay
G06648349Courtesy of SUBARU OF AMERICA, INC.
