Mass Air Flow and Intake Air Temperature Sensor: Removal

1. Disconnect the ground cable from battery.

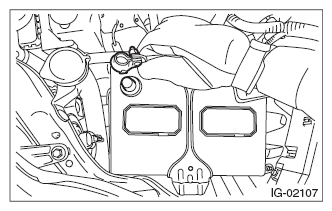

   Fig 1: Disconnecting Ground Cable From Battery

   Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the connector from the mass air flow and intake air temperature sensor, and remove the mass air flow and intake air temperature sensor.

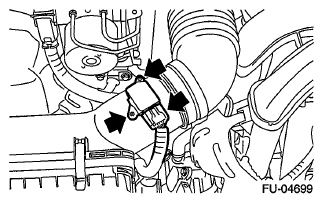

Fig 2: Locating Mass Air Flow Connector And Bolts

Courtesy of SUBARU OF AMERICA, INC.
