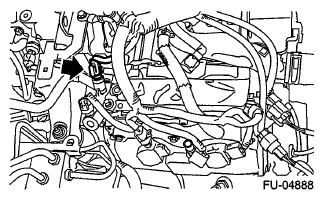

Oil Temperature Sensor: Installation
Install in the reverse order of removal.
NOTE:
Apply liquid gasket to the oil temperature sensor threads.
Liquid gasket:
THREE BOND 1324 (Part No. 004403042) or equivalent
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
