Throttle Body: Installation
Install in the reverse order of removal.

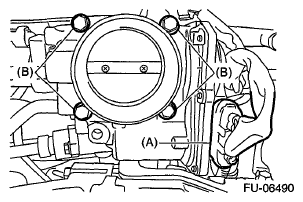

NOTE:
Use a new gasket.
Tightening torque:
8 N.m (0.8 kgf-m, 5.9 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
Align the clamp hole with the protrusion of the air intake boot assembly.
 Courtesy of SUBARU OF AMERICA, INC.
|

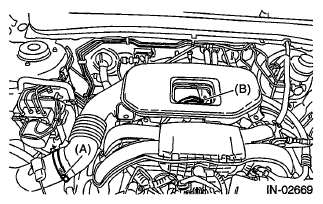

Tightening torque:
Clamp (A), (B)
3 N.m (0.3 kgf-m, 2.2 ft-lb)
 Courtesy of SUBARU OF AMERICA, INC.
|
