Throttle Body: Removal

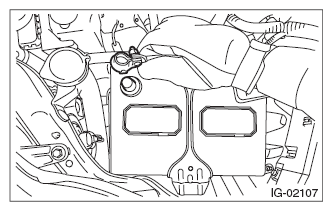

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.

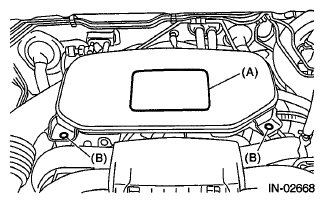

Remove the cover (A) and clip (B) from air intake boot assembly.

Fig 2: Identifying Cover And Clip
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp (A) which connects the air intake boot assembly and air cleaner case.
Loosen the clamp (B) which connects the air intake boot assembly and throttle body.

Fig 3: Identifying Air Intake Boot Assembly And Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the throttle position sensor connector (A).
Remove the bolts (B) which secure the throttle body to the multi-function duct assembly, and remove the throttle body.

Fig 4: Identifying Multi-Function Duct Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
