Variable Valve Lift Diagnosis Oil Pressure Switch: Removal

1. Disconnect the ground cable from battery.
   Fig 1: Disconnecting Ground Cable From Battery

   Courtesy of SUBARU OF AMERICA, INC.
2. Remove the air intake boot assembly. Refer to AIR INTAKE BOOT .
3. Disconnect the connector from the variable valve lift diagnosis oil pressure switch.
4. Remove the variable valve lift diagnosis oil pressure switch.

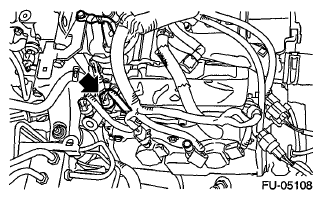

Fig 2: Locating Variable Valve Lift Diagnosis Oil Pressure Switch Connector

Courtesy of SUBARU OF AMERICA, INC.
