Communication For Initializing Impossible: Wiring Diagram

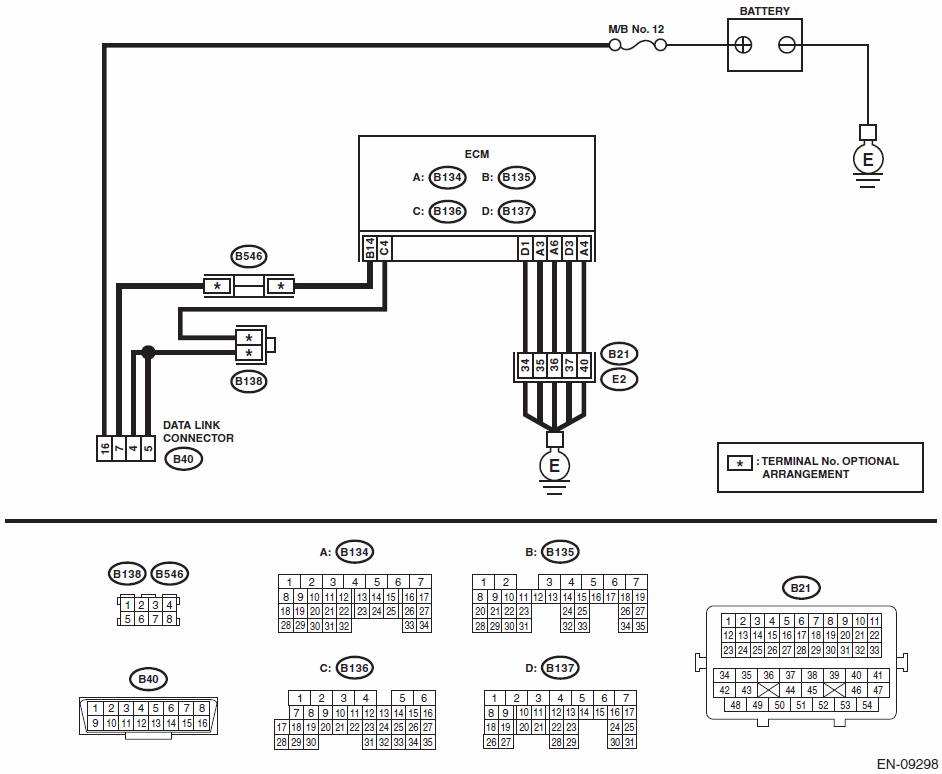

Fig 1: Subaru Select Monitor Communication - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

Step	Check	Yes	No
1 CHECK POWER SUPPLY CIRCUIT  Connect the SDI (Subaru Diagnosis Interface) or general scan tool to data link connector.	Does SDI or general scan tool turn ON?	Go to step 4	Go to step 2
2 CHECK POWER SUPPLY CIRCUIT  Measure the voltage between data link connector and chassis ground Connector & terminal  (B40) No. 16 (+) - Chassis ground (-):	Is the voltage 10 V or more?	Go to step 3	Repair the power supply circuit. NOTE: In this case, repair the following item: Open or ground short circuit of harness between battery and data link connector Blown out of fuse (M/B No. 12)
3 CHECK HARNESS BETWEEN DATA LINK CONNECTOR AND CHASSIS GROUND.  Turn the ignition switch to OFF. Measure the resistance of harness between data link connector and chassis ground. Connector & terminal  (B40) No. 4 - Chassis ground:  (B40) No. 5 - Chassis ground:	Is the resistance less than 5 Ω?	Repair the poor contact of data link connector.	Repair the harness and connector. NOTE: In this case, repair the following item: Open circuit of harness between ECM and data link connector Open circuit of harness between ECM and engine ground Poor contact of ECM connector Poor contact of coupling connector
4 CHECK HARNESS BETWEEN ECM AND DATA LINK CONNECTOR.  Turn the ignition switch to OFF. Disconnect the connector from ECM, TCM, VDC CM, airbag CM and body integrated unit. CAUTION: When disconnecting the connector from airbag CM, always follow the precautions on AB section. Refer to  CAUTION  , General Description.  Measure the resistance of harness between ECM and data link connector. Connector & terminal  (B135) No. 14 - (B40) No. 7:	Is the resistance less than 1 Ω?	Go to step 5	Repair the harness and connector. NOTE: In this case, repair the following item: Open circuit of harness between ECM and data link connector Poor contact of coupling connector
5 CHECK HARNESS BETWEEN ECM AND DATA LINK CONNECTOR.  Measure the resistance between data link connector and chassis ground Connector & terminal  (B40) No. 7 - Chassis ground:	Is the resistance 1 Ω or more?	Repair the poor contact of the ECM or data link connector.	Repair the ground short circuit of harness between ECM and data link connector.
