Rear Differential Mounting System

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

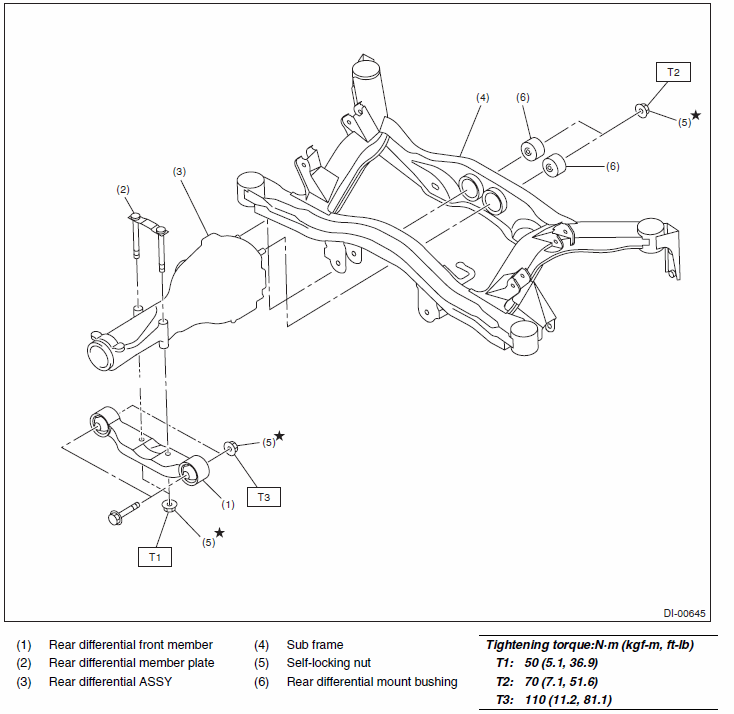

Fig 1: Rear Differential Mounting Replacement Components With Torque Specifications
G00510821Courtesy of SUBARU OF AMERICA, INC.
