Control Panel: Removal

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.

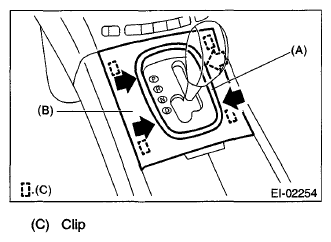

Remove the ring indicator (A) and console front panel (B).

Fig 1: Ring Indicator And Console Front Panel
Courtesy of SUBARU OF AMERICA, INC.

NOTE: The ring indicator can be easily removed by inserting the clip remover or equivalent into the positions indicated by arrows.
Remove the instrument ornament on passenger's seat and inner panels on driver's seat.

Fig 2: Instrument Ornament On Passenger's Seat
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws, and remove the control panel.

Fig 3: Locating Control Panel Screws
Courtesy of SUBARU OF AMERICA, INC.
