Rear Entertainment: Removal

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.

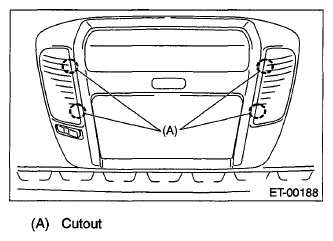

Insert a flat tip screwdriver in the cutout section, and remove the room light lens.

Fig 1: Cutout Section Of Room Light Lens
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts, and then remove the monitor cover.

Fig 2: Locating Monitor Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the 4 mounting bolts.

Fig 3: Locating Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the temporary screws and remove the monitor body.
CAUTION: Pay attention not to drop the body at removal.

Fig 4: Locating Monitor Body Temporary Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the temporary clips from the roof brace.
