Ignition Switch Illumination: Removal

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from the battery.
Remove the screws, and detach the upper column cover and lower column cover.

Fig 1: Locating Steering Column Covers Screws (Upper And Lower)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ignition switch illumination connector (A).
Turn the ignition switch illumination connector to the left and disconnect it.

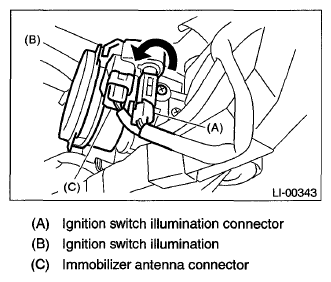

Fig 2: Identifying Ignition Switch Illumination Connector
Courtesy of SUBARU OF AMERICA, INC.
