Propeller Shaft
WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

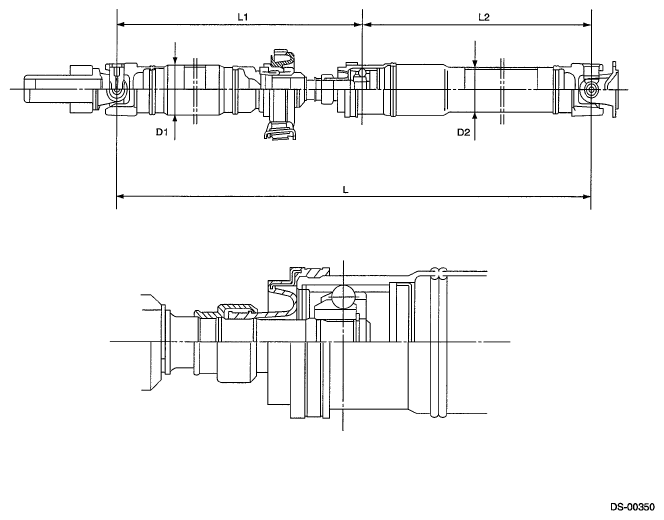

PROPELLER SHAFT SPECIFICATIONS
| Propeller shaft type |
EDJ |
| Propeller shaft length: L |
mm (in) |
1, 399(55.08) |
| Front propeller shaft Joint-to-joint length: L1 |
mm (in) |
645 (25.39) |
| Rear propeller shaft Joint-to-Joint length: L2 |
mm (in) |
754 (29.69) |
| Outer diameter of tube |
mm (in) |
D1 |
63.5 (2.50) |
| D2 |
57.5 (2.26) |
Courtesy of SUBARU OF AMERICA, INC.
