Diagnostic Procedure

  1. Make sure that the engine coolant temperature is less than 30°C (86°F).
  2. Drive according to the drive pattern described below.

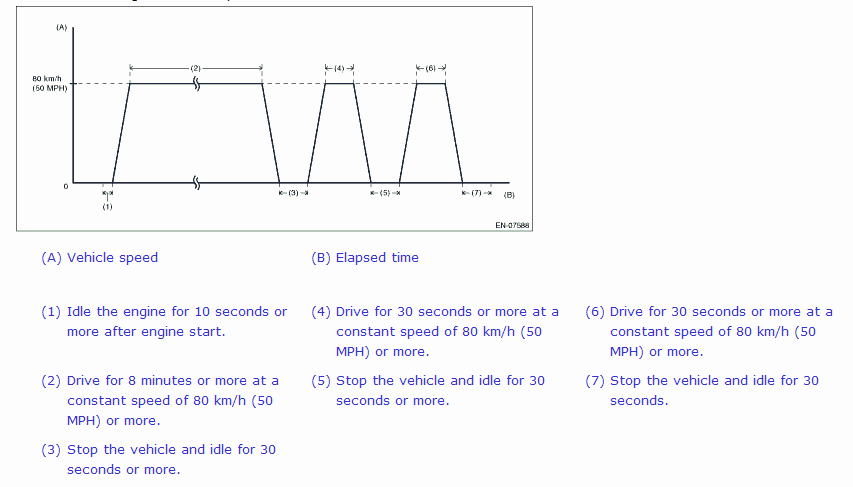

Fig 1: Driving Pattern Graph
G00526389Courtesy of SUBARU OF AMERICA, INC.
NOTE:
  • There is no given transition time between idling and cruising.
  • Driving at constant speed only on a downhill causes smaller engine load and may result in failure to obtain a right diagnostic result.
  • When the engine stops while performing drive cycle F, perform it again from the state of procedure 1).
