Keyless Entry System

NOTE: The following inspections show the initial settings. When the settings are different from the initial settings, use Subaru Select Monitor to check the details of each setting for inspections. Refer to OPERATION .

Fully open all the door windows.
Remove the key from the ignition switch and close all the doors including rear gate.
Press the rear gate and trunk open button for at least one second.
- Check if the trunk is opened and the hazard light blinks twice and the buzzer sounds twice. (Sedan model)
- Check if the rear gate is unlocked and the hazard light blinks twice and the buzzer sounds twice. (OUTBACK model)

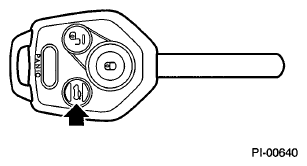

  Fig 1: Pressing Lock Button On Keyless Transmitter
  Courtesy of SUBARU OF AMERICA, INC.
Press the "LOCK" button on the keyless transmitter with one of the doors (including the rear gate and trunk) opened. Check if all doors are locked, hazard light blinks five times and the buzzer sounds five times and warning shows one of the doors (including the rear gate and trunk) open.
Close all the doors including rear gate and trunk. Press the "LOCK" button momentarily on the keyless transmitter. Check that all the doors (including rear gate and trunk) are locked, hazard light blinks once and buzzer sounds once.

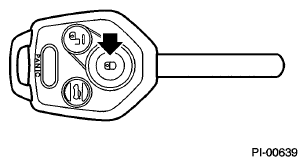

Fig 2: Pressing Lock Button Momentarily On Keyless Transmitter
Courtesy of SUBARU OF AMERICA, INC.
Press the "UNLOCK" button momentarily on the keyless transmitter. Check that the driver's door is unlocked and hazard light blinks twice and the buzzer sounds twice.
And press the "UNLOCK" button momentarily again in 5 seconds. Check that all doors (including rear gate) are unlocked.

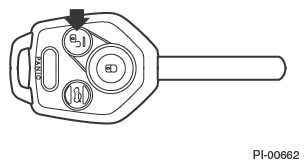

Fig 3: Pressing Unlock Button
Courtesy of SUBARU OF AMERICA, INC.
Within a distance of 10 m from a vehicle, press keyless transmitter's "LOCK" button three times within five seconds. Check that the horn honks once and that the hazard light blinks three times.
Move the power door lock switch to the lock position with one of doors (including the rear gate) opened. Next, close all the doors including rear gate. Check if all doors are locked and buzzer sounds once and the hazard light flashes once.
Check buzzer operation.
The buzzer sounds when the doors are locked or unlocked. The buzzer can be turned off if desired. Turn the buzzer off or on with following procedure.
1. Close all the doors including rear gate, then remove the key from ignition key lock.
2. Press the power door lock switch to unlock and hold it until the operation is finished.
3. Insert the key into ignition key lock, and insert and remove the key in ignition key lock 5 times in 10 seconds.
4. When finished step ( 3), open and close the driver's door once within 10 seconds.
  NOTE: When opening and closing of the door is not available within 10 seconds, hazard light blinks once and the change over operation is cancelled. Retry from the step ( 1).
5. Hazard light blinks 3 times and the buzzer sound turns ON or OFF.
Press the "Panic" button of the keyless transmitter. Check if the alarm condition happens (horn sounds continuously, hazard light blinks, security indicator comes on). Check whether this condition lasts until any button on the keyless transmitter is pressed or lasts for 30 seconds.

Fig 4: Pressing Panic Button Of Keyless Transmitter
Courtesy of SUBARU OF AMERICA, INC.
