Front, Rear Suspension Bushing

Apply pressure with tire lever etc, and inspect the bushing for excessive wear or damage. Replace the bushings if faulty.

• Front suspension bushing

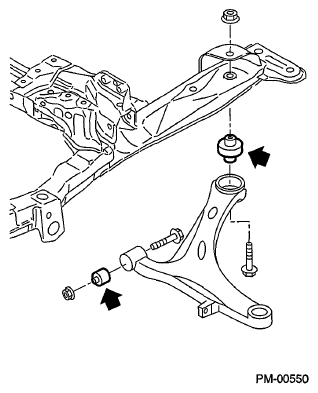

  Fig 1: Locating Front Suspension Bushing

  Courtesy of SUBARU OF AMERICA, INC.
• Rear suspension bushing

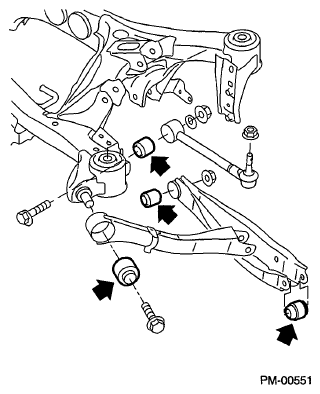

  Fig 2: Identifying Rear Suspension Bushing

  Courtesy of SUBARU OF AMERICA, INC.
