Special Tool

Subaru Select Monitor

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	1B022XU0	SUBARU SELECT MONITOR III KIT	Used for setting of each function and troubleshooting for electrical system.

TEST HARNESS AD

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299XA020	TEST HARNESS AD	Used when measuring voltage and resistance of the occupant detection system.

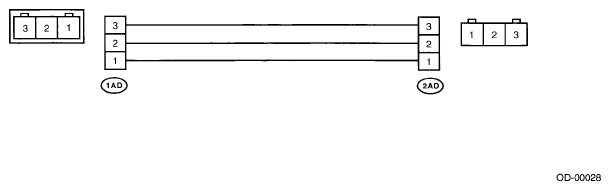

Fig 1: Measuring Voltage And Resistance Of Occupant Detection System

G05003947

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AG

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299AG070	TEST HARNESS AG	Used when measuring voltage and resistance of airbag control module.

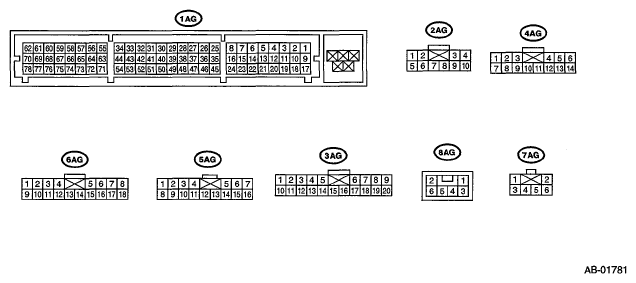

Fig 2: Measuring Voltage And Resistance Of Airbag Control Module

G05663419

Courtesy of SUBARU OF AMERICA, INC.

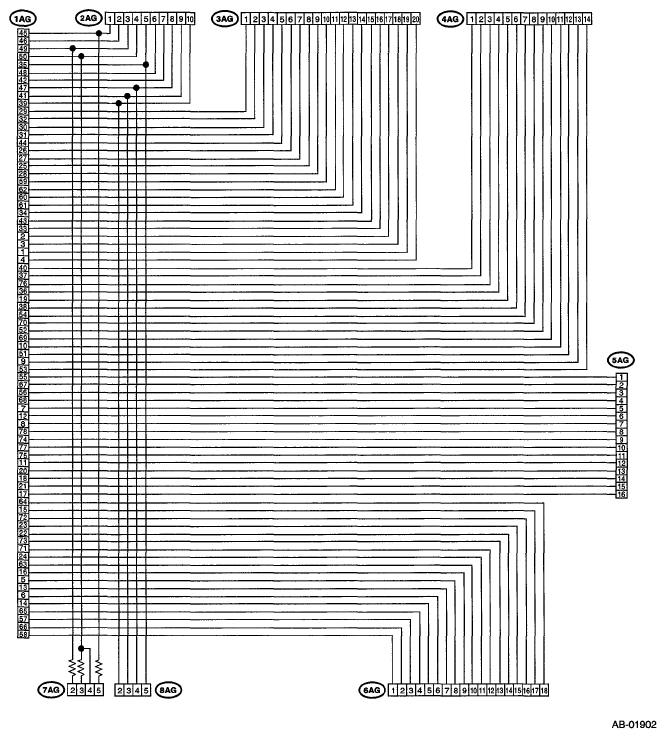

Fig 3: View Of Seat Belt System Circuit Diagram

G05663420

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS Y

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299AG040	TEST HARNESS Y	Used for troubleshooting seat belt buckle switch.

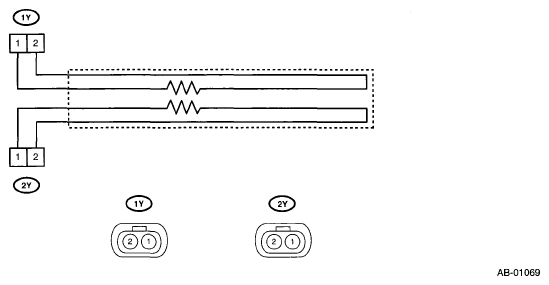

Fig 4: Identifying Seat Belt Buckle Switch

G05003939

Courtesy of SUBARU OF AMERICA, INC.

AIRBAG RESISTOR

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299PA040	AIRBAG RESISTOR	Used in replacement of airbag module for which resistance value is same as airbag module. Two ST are required for diagnosis of two-stage inflator type airbag module.

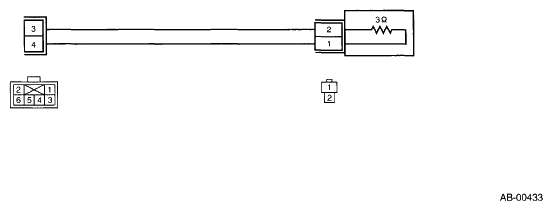

Fig 5: View Of Airbag Resistor

G05003997

Courtesy of SUBARU OF AMERICA, INC.
