Hose And Tank

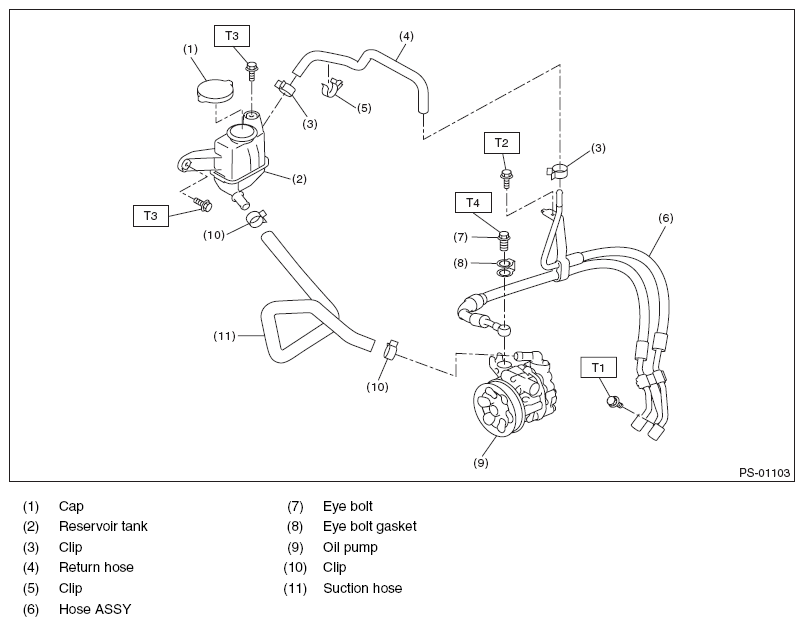

Fig 1: Exploded View Of Hose And Tank

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 10 (1.02, 7.4)

T3: 13 (1.33, 9.6)

T4: 40 (4.08, 29.5)
