Reservoir Tank: Installation

  1. Install the reservoir tank to the body.

    Tightening torque:

    13 N.m (1.33 kgf-m, 9.6 ft-lb)

  2. Connect the hose to the reservoir tank.

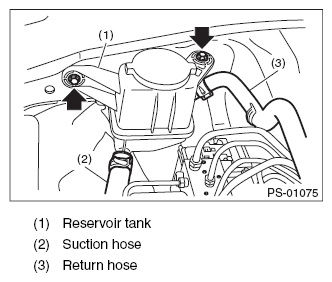

    Fig 1: Locating Reservoir Tank Bolts
    G07914386Courtesy of SUBARU OF AMERICA, INC.
  3. Replenish power steering fluid up to the specified level. Refer to , INSPECTION , Power Steering Fluid.
