Steering Column: Disassembly

  1. Remove the steering column cover.
    1. Lower the lever of the steering column.
    2. Release the claws and remove the screws, then detach the steering column lower cover.
      Fig 1: Locating Steering Column Cover Screws
      G06653203Courtesy of SUBARU OF AMERICA, INC.
    3. Separate the steering column upper cover and steering upper cover, and remove the steering column upper cover.
      Fig 2: Identifying Steering Column Upper Cover And Steering Upper Cover
      G06653204Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the screw and remove the combination switch.

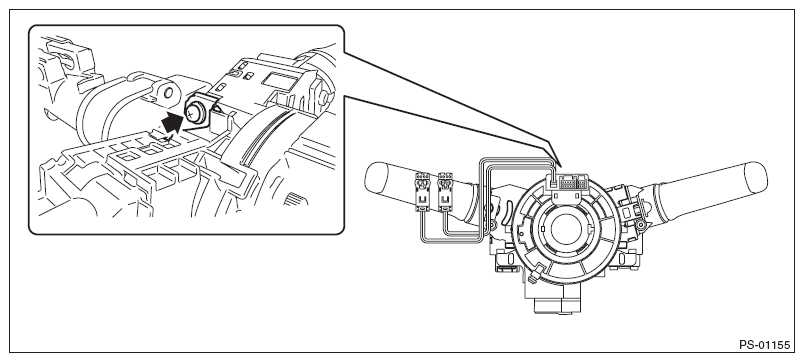

    Fig 3: Locating Combination Switch Screw
    G07914318Courtesy of SUBARU OF AMERICA, INC.
