Steering Gearbox: Removal

Remove the cradle. Refer to CRADLE REMOVAL .
Remove the bolts, and remove left and right main mounting brackets.

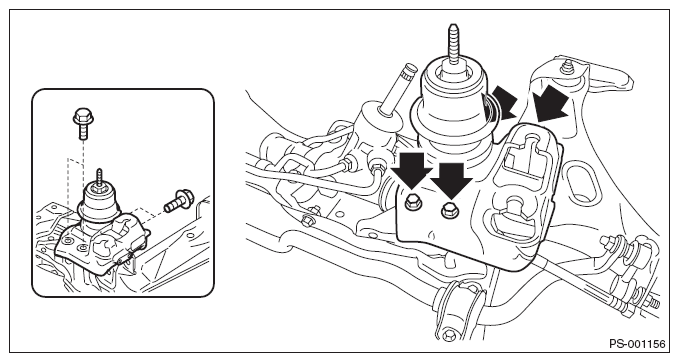

Fig 1: Locating Left And Right Main Mounting Brackets Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and remove the steering gearbox.
CAUTION: Be careful not to damage the steering boot.

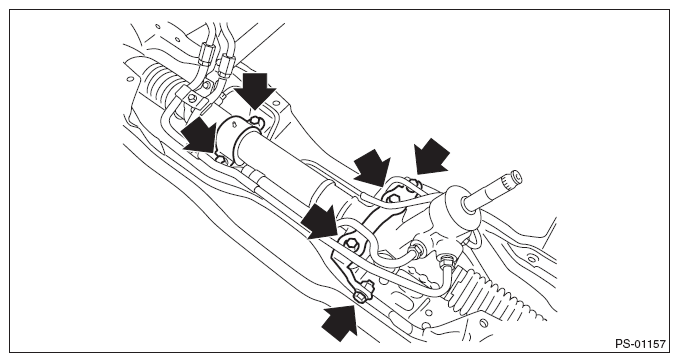

Fig 2: Locating Steering Gearbox Bolts
Courtesy of SUBARU OF AMERICA, INC.
