Rear Bushing

1. Before installation, inspect the following items and replace any faulty part with a new one.
   • Check the front arm for damage or cracks, and replace if defective.
   • Visually check the bushing for abnormal cracks, fatigue or damage.
   • Visually check the dust cover on the ball joint for damage.
2. Align the center of recess portion with the alignment mark on the front arm, with the protrusion (A) of recess portion facing the front side of vehicle.

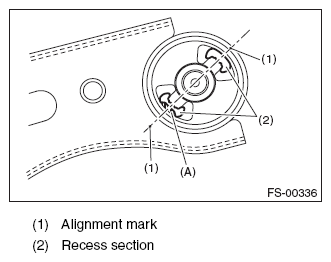

   Fig 1: Identifying Alignment Mark On Front Arm

   Courtesy of SUBARU OF AMERICA, INC.
3. Using the ST and a press, install the rear bushing.

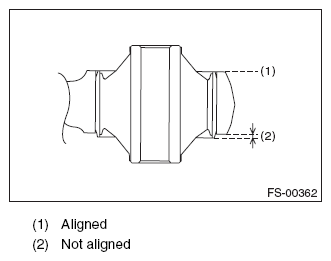

Fig 2: Aligning Upper Face Of Front Arm And End Of Bushing

Courtesy of SUBARU OF AMERICA, INC.

PREPARATION TOOL:

ST1: REMOVER (20299AG000)

ST2: BASE (20299AG010)

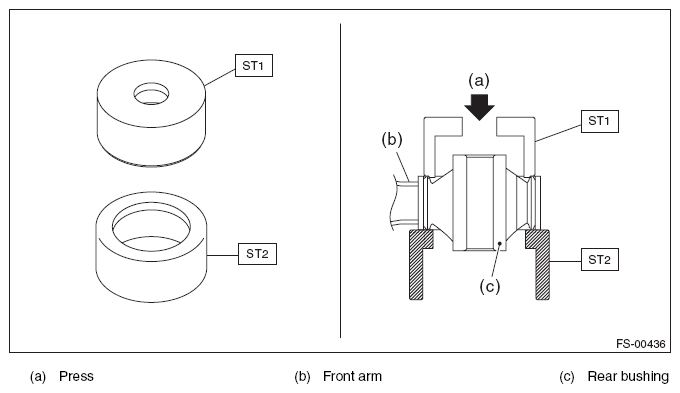

Fig 3: Pressing Rear Bushing

Courtesy of SUBARU OF AMERICA, INC.
