Front Arm: Removal

Lift up the vehicle, and then remove the front wheels.
Remove the front arm.
1. Remove the nut and disconnect the front stabilizer link.
2. Remove the bolt, and then remove the ball joint for the front arm.

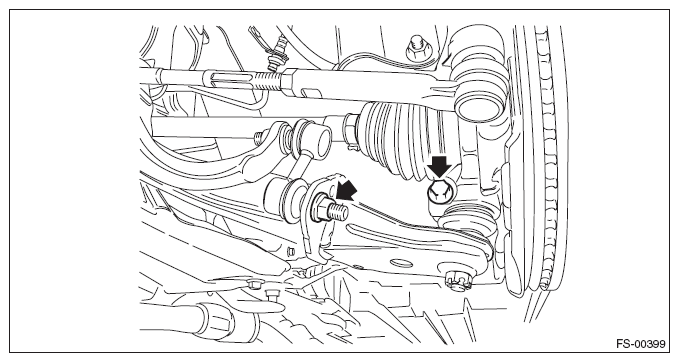

  Fig 1: Locating Front Arm Bolt And Nut
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the bolts, then remove the front arm.

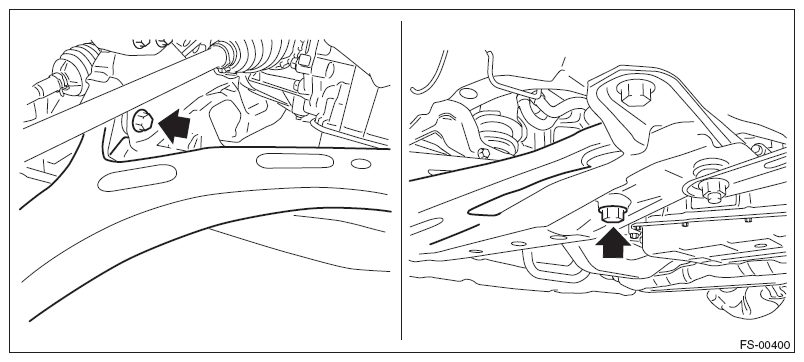

  Fig 2: Locating Front Arm Bolts
  Courtesy of SUBARU OF AMERICA, INC.
