Front Strut: Assembly

Before assembly, check each part. Refer to , INSPECTION , Front Strut.
Using a coil spring compressor, compress the coil spring.
NOTE: Make sure that the vertical install direction of the coil spring is as shown in the figure.

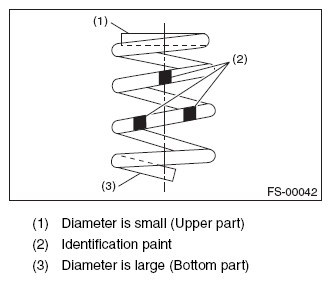

Fig 1: Identifying Coil Spring Diameter
Courtesy of SUBARU OF AMERICA, INC.
Set the coil spring correctly so that its end face seats well in the spring seat as shown in the figure.
CAUTION: Install the coil spring so that the end of spring is between the marks on the spring seat.

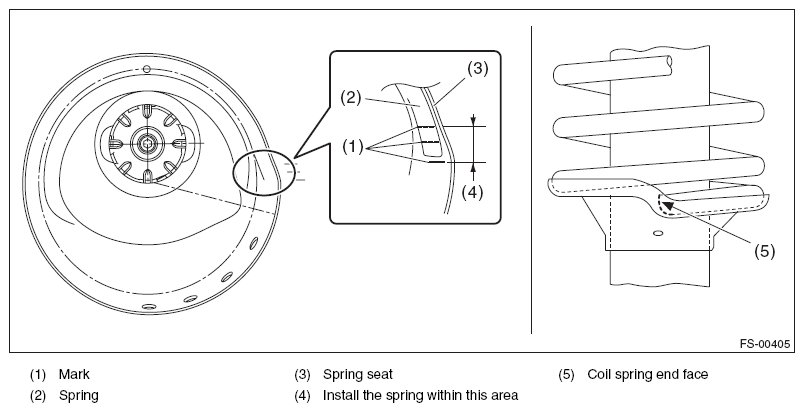

Fig 2: Identifying Coil Spring Installation Position
Courtesy of SUBARU OF AMERICA, INC.
Install the dust cover and helper to the piston rod.
Pull the piston rod fully upward, and install the spring seat.
NOTE: Position the upper spring seat as shown in the figure.

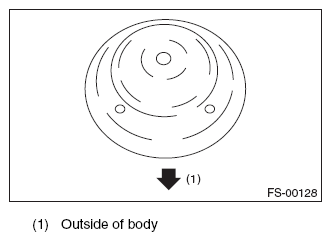

Fig 3: Identifying Upper Spring Seat
Courtesy of SUBARU OF AMERICA, INC.
Install the spacer and strut mount to the piston rod, and temporarily tighten a new self-locking nut.
Using a hexagon wrench to prevent strut rod from turning, tighten the new self-locking nut with ST.
PREPARATION TOOL:

ST: STRUT MOUNT SOCKET (20399AG000)

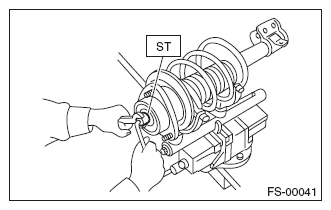

Fig 4: Tightening Self-Locking Nut Using Hexagon Wrench
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

55 N.m (5.61 kgf-m, 40.6 ft-lb)
Loosen the coil spring compressor carefully.
