Components With Torque Specifications

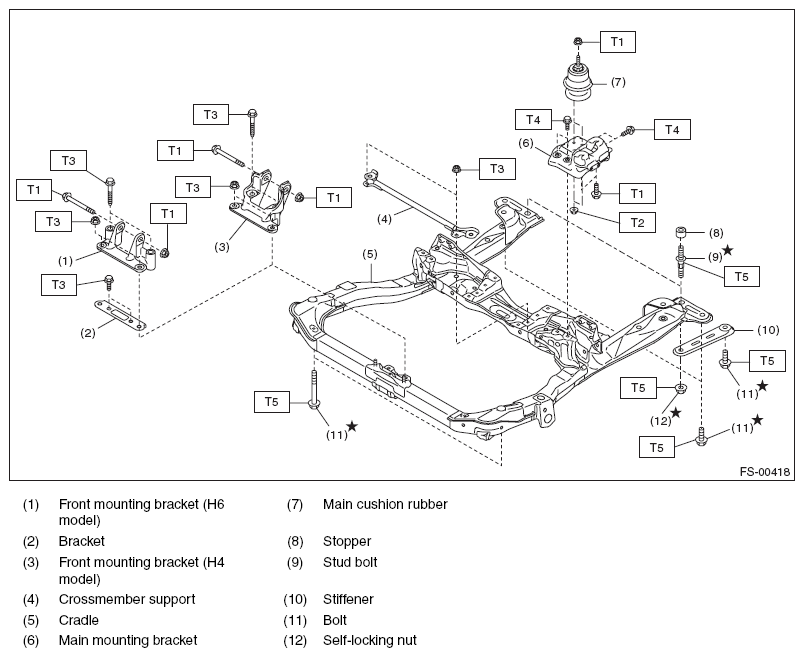

Fig 1: Front Suspension Replacement Components With Torque Specifications (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 45 (4.59, 33.2)

T2: 55 (5.61, 40.6)

T3: 60 (6.12, 44.3)

T4: 65 (6.63, 47.9)

T5: 75 (7.65, 55.3)

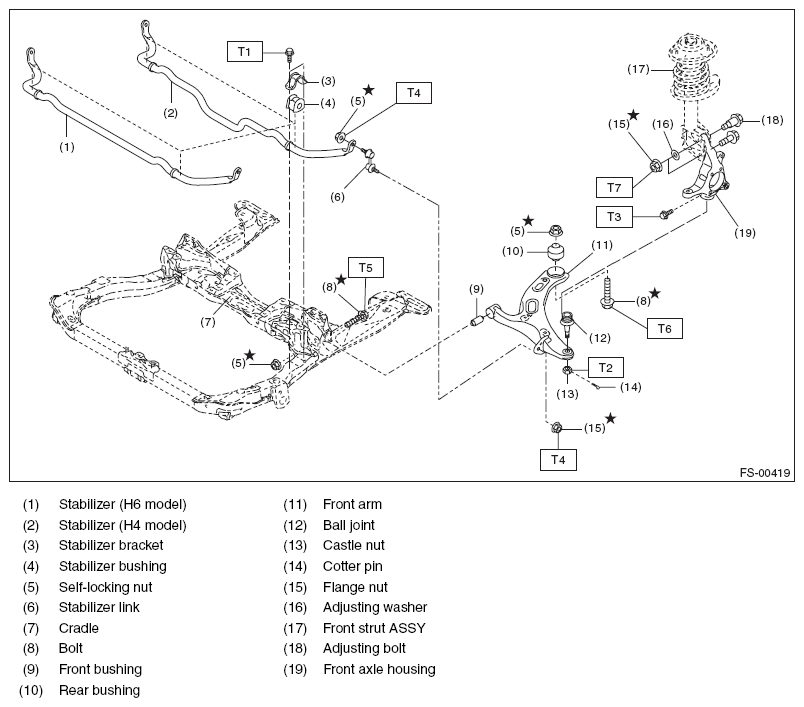

Fig 2: Front Suspension Replacement Components With Torque Specifications (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.55, 18.4)

T2: 39 (3.98, 28.8)

T3: 50 (5.10, 36.9)

T4: 60 (6.12, 44.3)

T5: 95 (9.69, 70.1)

T6: 140 (14.28, 103.3)

T7: 155 (15.81, 114.3)

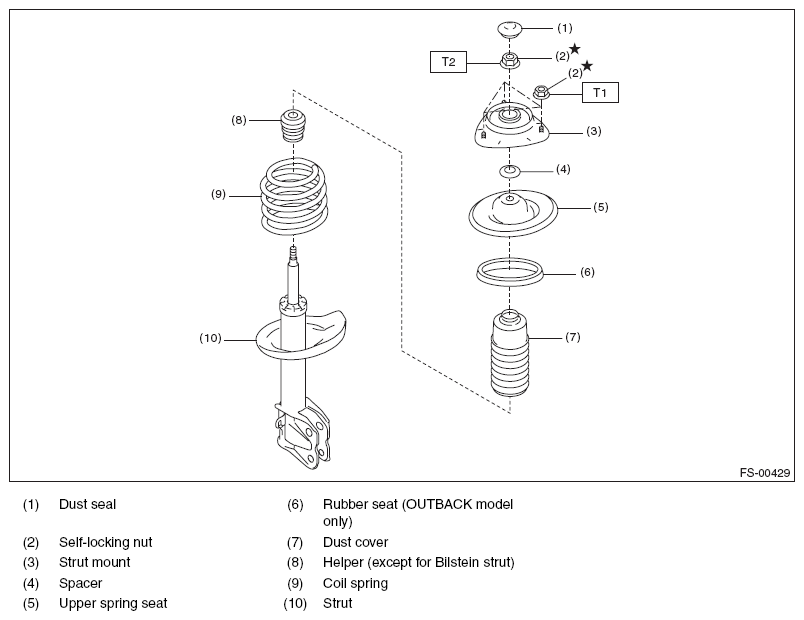

Fig 3: Front Suspension Replacement Components With Torque Specifications (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.04, 14.8)

T2: 55 (5.61, 40.6)
