MT Gear Shift Cable: Installation

When replacing the new MT gear shift cable, secure it to shift bracket with the clamps, be careful not to mistake the installing direction.

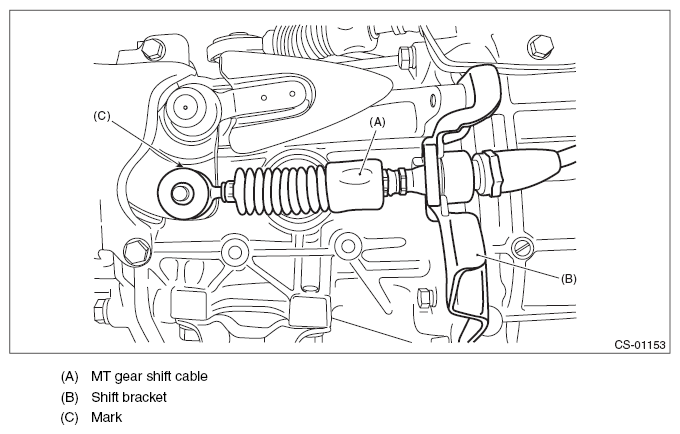

Fig 1: Identifying MT Gear Shift Cable And Shift Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the MT gear shift cable and shift bracket as a single unit onto transmission.
CAUTION:
- Do not bend MT gear shift cable at a sharp angle.
- Do not twist the cable inner excessively.
NOTE: When installing the MT gear shift cable, make sure that the mark or blue mark on the cable faces up.

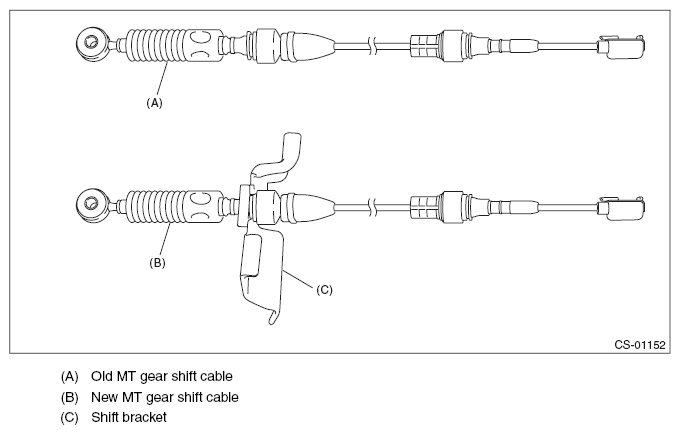

Fig 2: Identifying MT Gear Shift Cable And Shift Bracket
Courtesy of SUBARU OF AMERICA, INC.
Tighten the shift bracket with specified torque.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

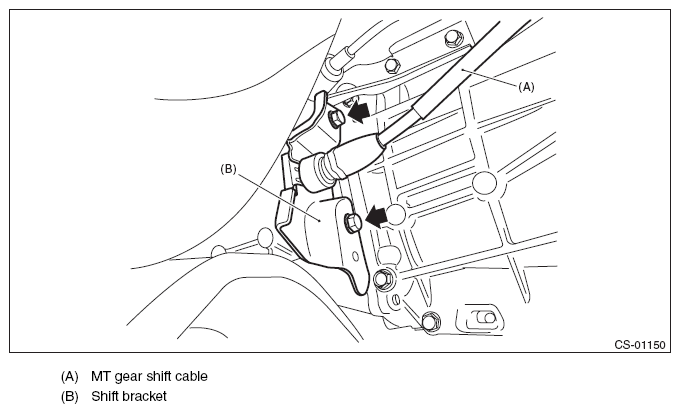

Fig 3: Identifying Shift Bracket And MT Gear Shift Cable With Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the snap pin.

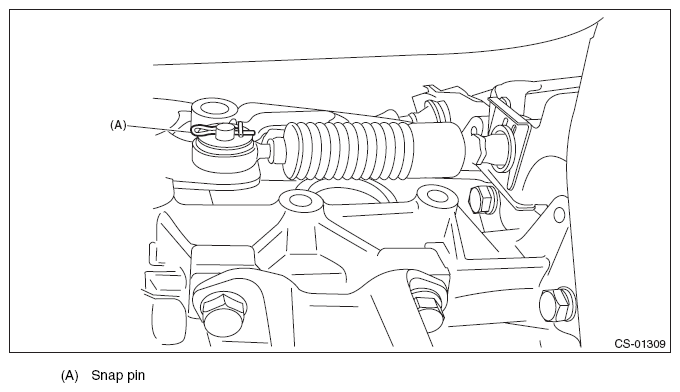

Fig 4: Identifying Snap Pin
Courtesy of SUBARU OF AMERICA, INC.
Install the dust cover to the transmission body. (OUTBACK model)
Tightening torque:

15 N.m (1.5 kgf-m, 11.1 ft-lb)

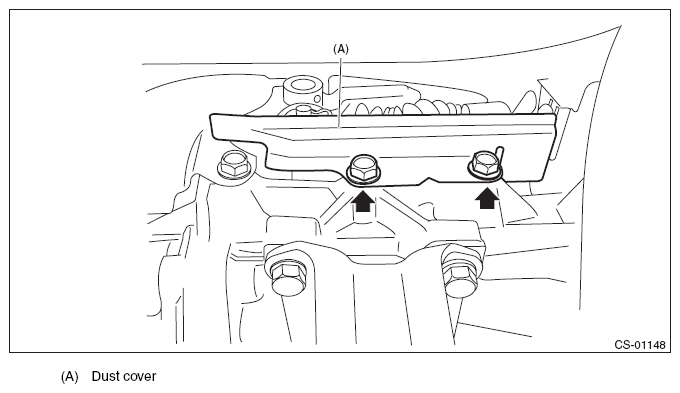

Fig 5: Identifying Dust Cover With Bolts
Courtesy of SUBARU OF AMERICA, INC.
Insert the MT gear shift cable into the cover cable assembly, and secure it with the clamp.

Fig 6: Identifying MT Gear Shift Cable And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Connect the MT gear shift cable.
Install the plate cable assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

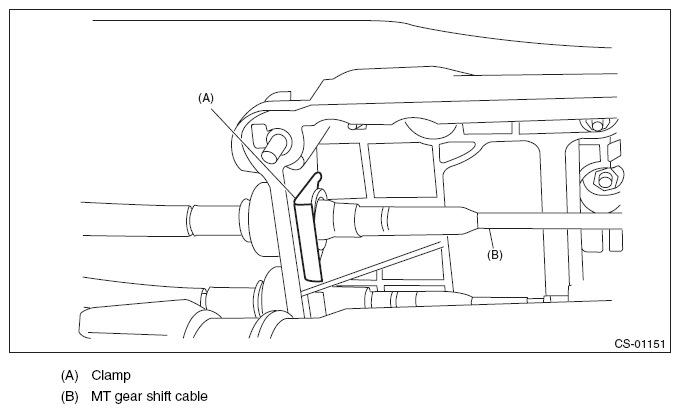

Fig 7: Locating Plate Cable Bolts
Courtesy of SUBARU OF AMERICA, INC.
Insert the MT gear shift cable into clamp cable, and install to the transmission.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

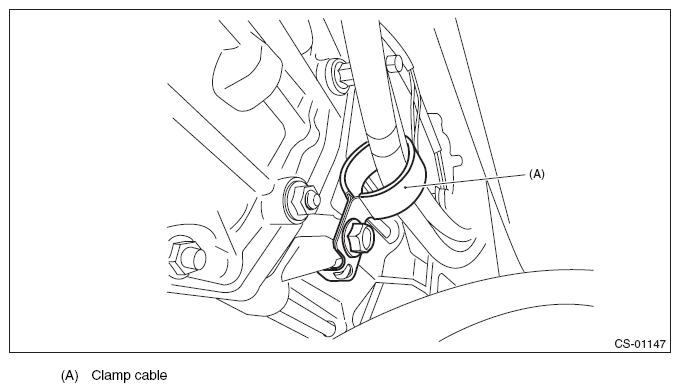

Fig 8: Identifying Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 9: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe and rear exhaust pipe. (non-turbo model) Refer to CENTER EXHAUST PIPE EX(H4SO)-7, INSTALLATION . Refer to REAR EXHAUST PIPE EX(H4SO)-8, INSTALLATION .
Install the center exhaust pipe (rear) and rear exhaust pipe. (turbo model) Refer to CENTER EXHAUST PIPE EX(H4DOTC)-13, INSTALLATION . Refer to REAR EXHAUST PIPE EX(H4DOTC)-15, INSTALLATION .
Lower the vehicle.
Make sure the gears can be shifted accurately into each gear.
