Select Cable: Installation

1. Install the select cable to plate assembly.

   Tightening torque:

   18 N.m (1.8 kgf-m, 13.3 ft-lb)

   Fig 1: Locating Select Cable Bolts With Torque Specification

   Courtesy of SUBARU OF AMERICA, INC.
2. Install the select cable to range select lever.
3. Install the plate assembly to transmission.

   Tightening torque:

   T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

   • CVT model

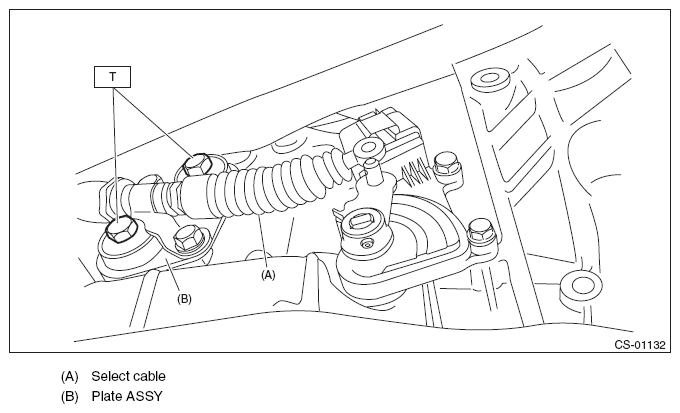

     Fig 2: Select Cable, Plate Assy And Bolts With Torque Specification (CVT Model)

     Courtesy of SUBARU OF AMERICA, INC.
   • AT model

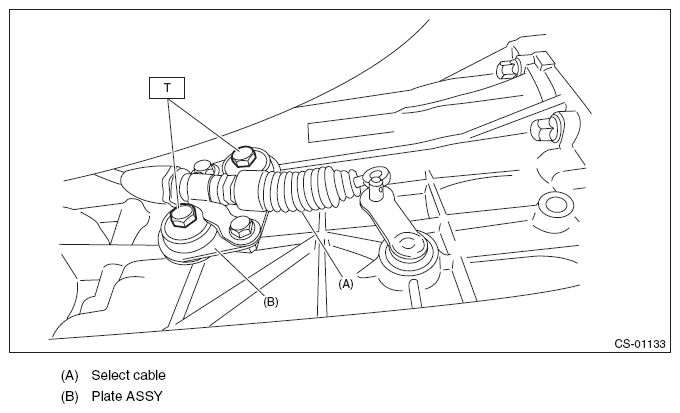

     Fig 3: Select Cable, Plate Assy And Bolts With Torque Specification (AT Model)

     Courtesy of SUBARU OF AMERICA, INC.
4. Install the washer and snap pin to the shifter arm.
   • CVT model

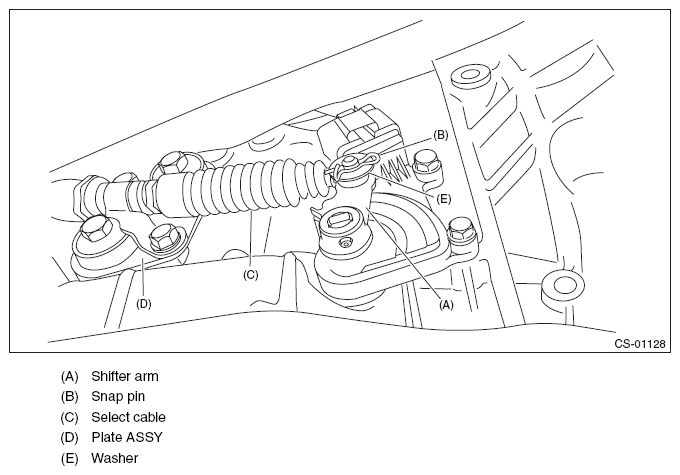

     Fig 4: Identifying Shifter Arm, Snap Pin, Select Cable, Plate Assy, Washer (CVT Model)

     Courtesy of SUBARU OF AMERICA, INC.
   • AT model

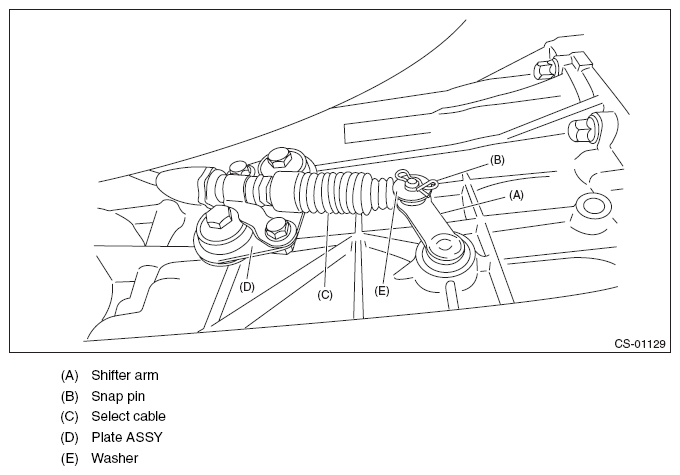

     Fig 5: Identifying Shifter Arm, Snap Pin, Select Cable, Plate Assy, Washer (AT Model)

     Courtesy of SUBARU OF AMERICA, INC.
5. Install new clamp paying attention to the installing direction.

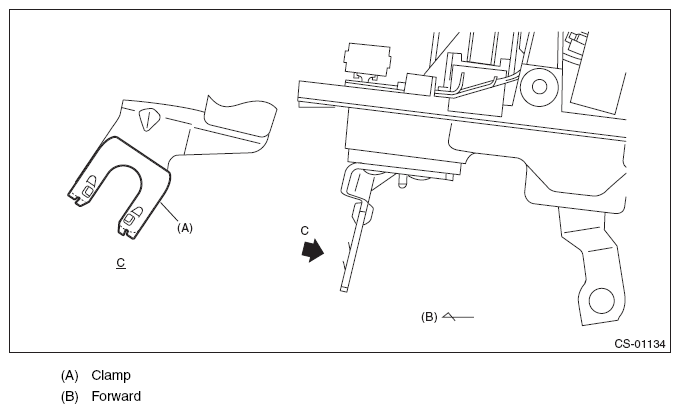

   Fig 6: Identifying Clamp Installation Position

   Courtesy of SUBARU OF AMERICA, INC.
6. Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.
   Fig 7: Inserting Inner Cable Tip Into Connector Hole Of Select Lever

   Courtesy of SUBARU OF AMERICA, INC.
7. Shift the select lever to the "N" range, and then adjust the select cable position. Refer to , ADJUSTMENT , Select Cable.
8. Install the heat shield cover.

   Tightening torque:

   18 N.m (1.8 kgf-m, 13.3 ft-lb)

   Fig 8: Identifying Heat Shield Cover

   Courtesy of SUBARU OF AMERICA, INC.
9. Install the front exhaust pipe and rear exhaust pipe.

• 2.5 L model

  Refer to FRONT EXHAUST PIPE EX(H4SO)-5, INSTALLATION . Refer to REAR EXHAUST PIPE EX(H4SO)-8, INSTALLATION .

• 3.6 L model

Refer to FRONT EXHAUST PIPE EX(H6DO)-6, INSTALLATION . Refer to REAR EXHAUST PIPE EX(H6DO)-8, INSTALLATION .
