Select Lever: Removal

Shift the select lever to "N" range.
Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the rear exhaust pipe.
- 2.5 L non-turbo model
Refer to REAR EXHAUST PIPE EX(H4SO)-8, REMOVAL .
- 3.6 L model
Refer to REAR EXHAUST PIPE EX(H6DO)-8, REMOVAL .
Remove the heat shield cover.

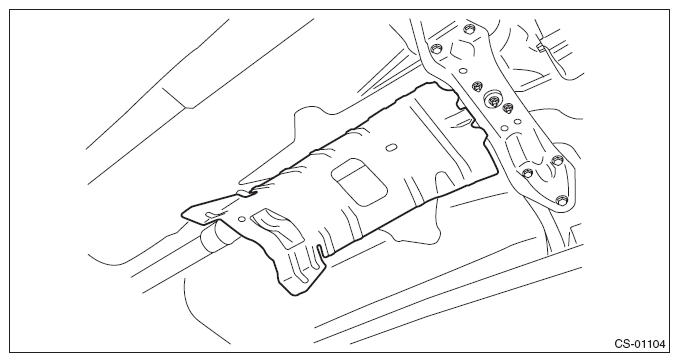

Fig 1: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable from arm assembly.

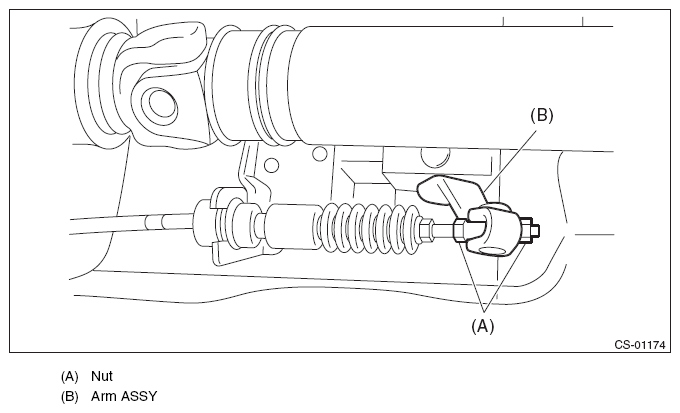

Fig 2: Identifying Arm Assembly And Nut
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw of clamp and remove the cable.

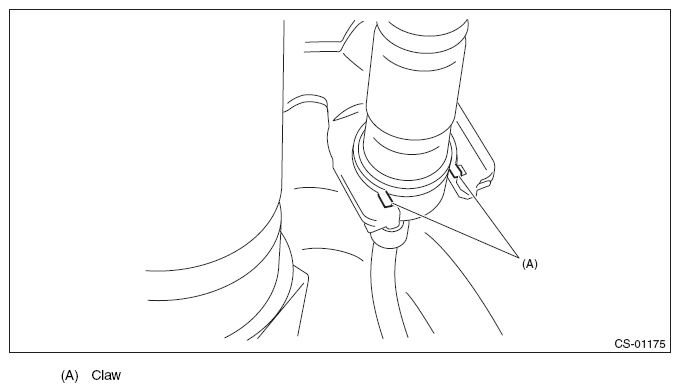

Fig 3: Identifying Cable Claw
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Lower the cover grip AT vertically toward the lever.

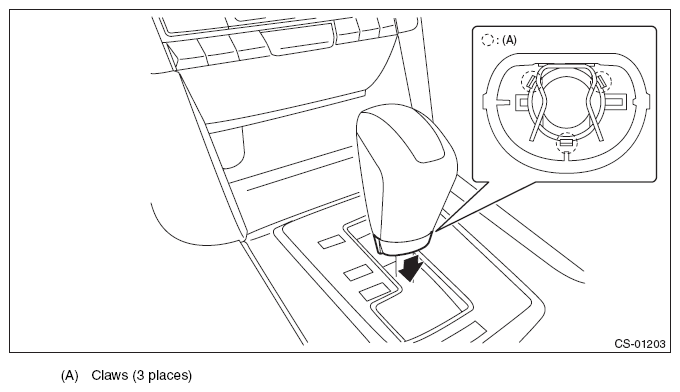

Fig 4: Identifying Cover Claws
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp grip pin.

Fig 5: Removing Clamp Grip Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the grip assembly.

Fig 6: Removing Grip Assembly
Courtesy of SUBARU OF AMERICA, INC.
Turn over the rubber and remove the console front cover assembly.

Fig 7: Removing Console Front Cover Assembly
Courtesy of SUBARU OF AMERICA, INC.

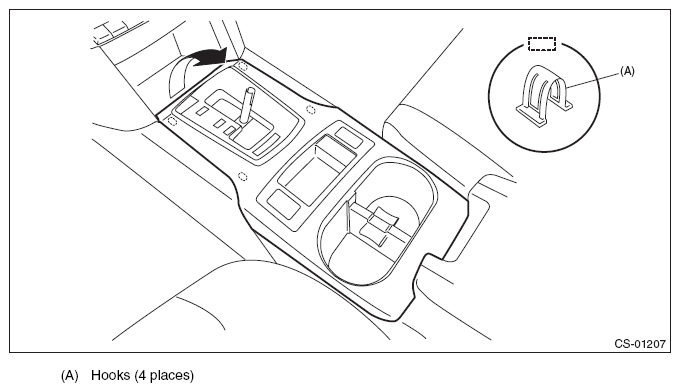

Fig 8: Identifying Hooks
Courtesy of SUBARU OF AMERICA, INC.
Remove the console box. Refer to CONSOLE BOX .
Remove the harness clip from the select lever.

Fig 9: Locating Select Lever Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the harness connector.

Fig 10: Identifying Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the four bolts to remove the select lever assembly.
