5MT Gear Shift Lever

The manual transmission's gear shift lever system is a parallel link type whose stay is mounted through a cushion rubber.

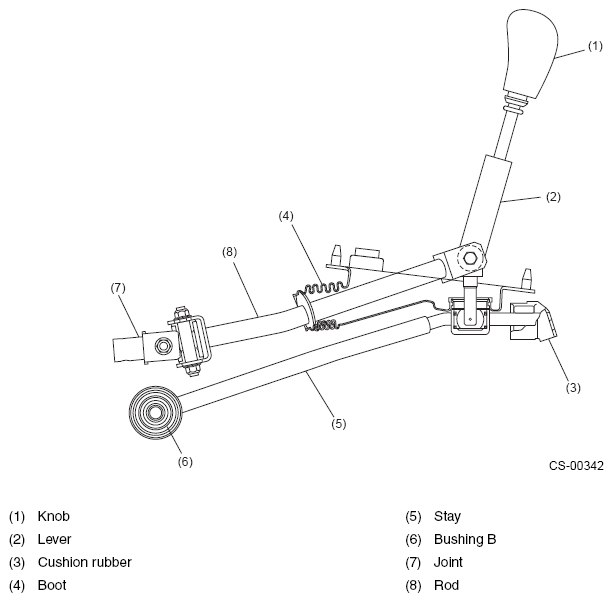

Fig 1: Identifying 5MT Gear Shift Lever Components
G08260862Courtesy of SUBARU OF AMERICA, INC.
