Symptom Related Diagnostic Procedures

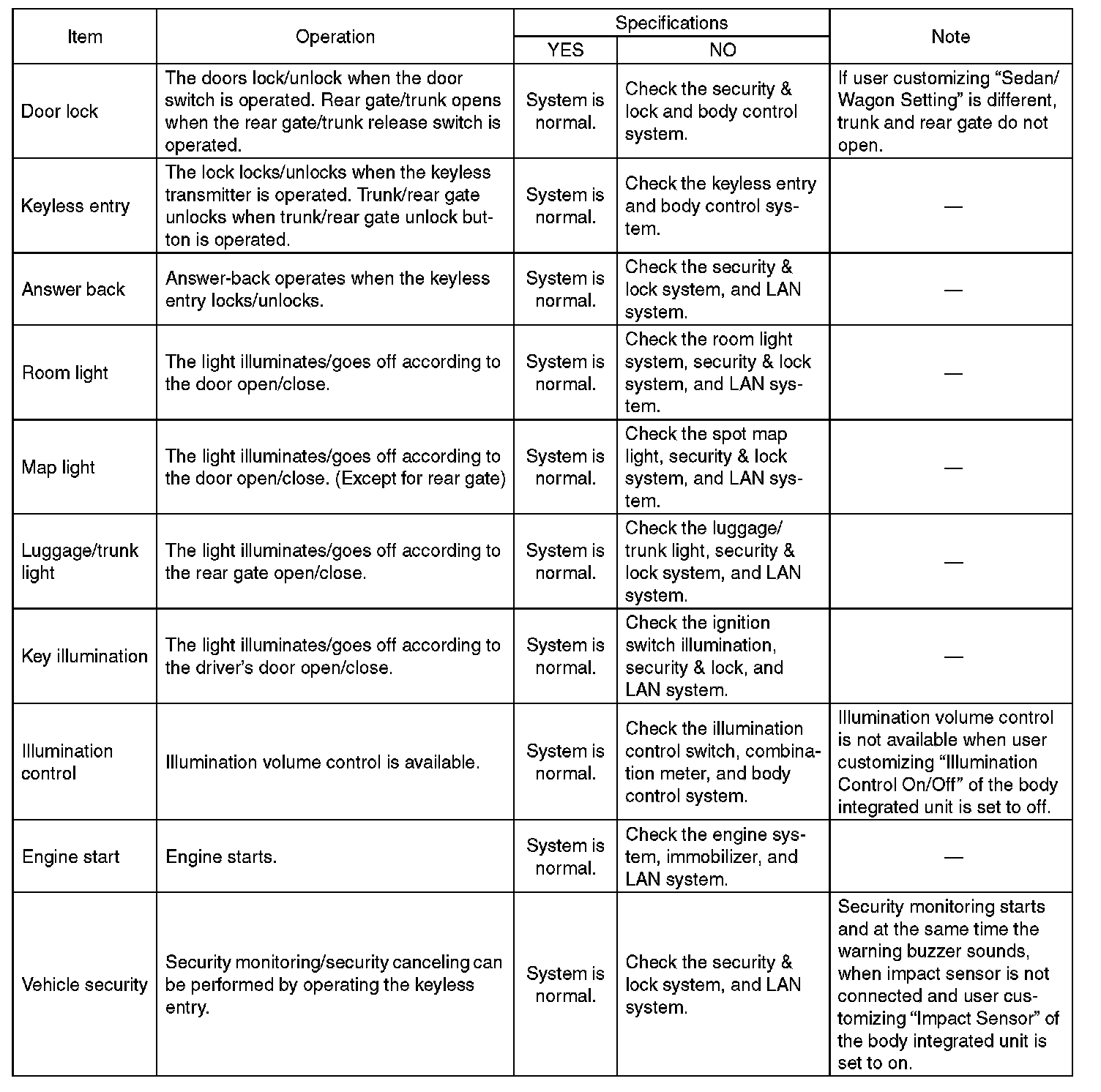

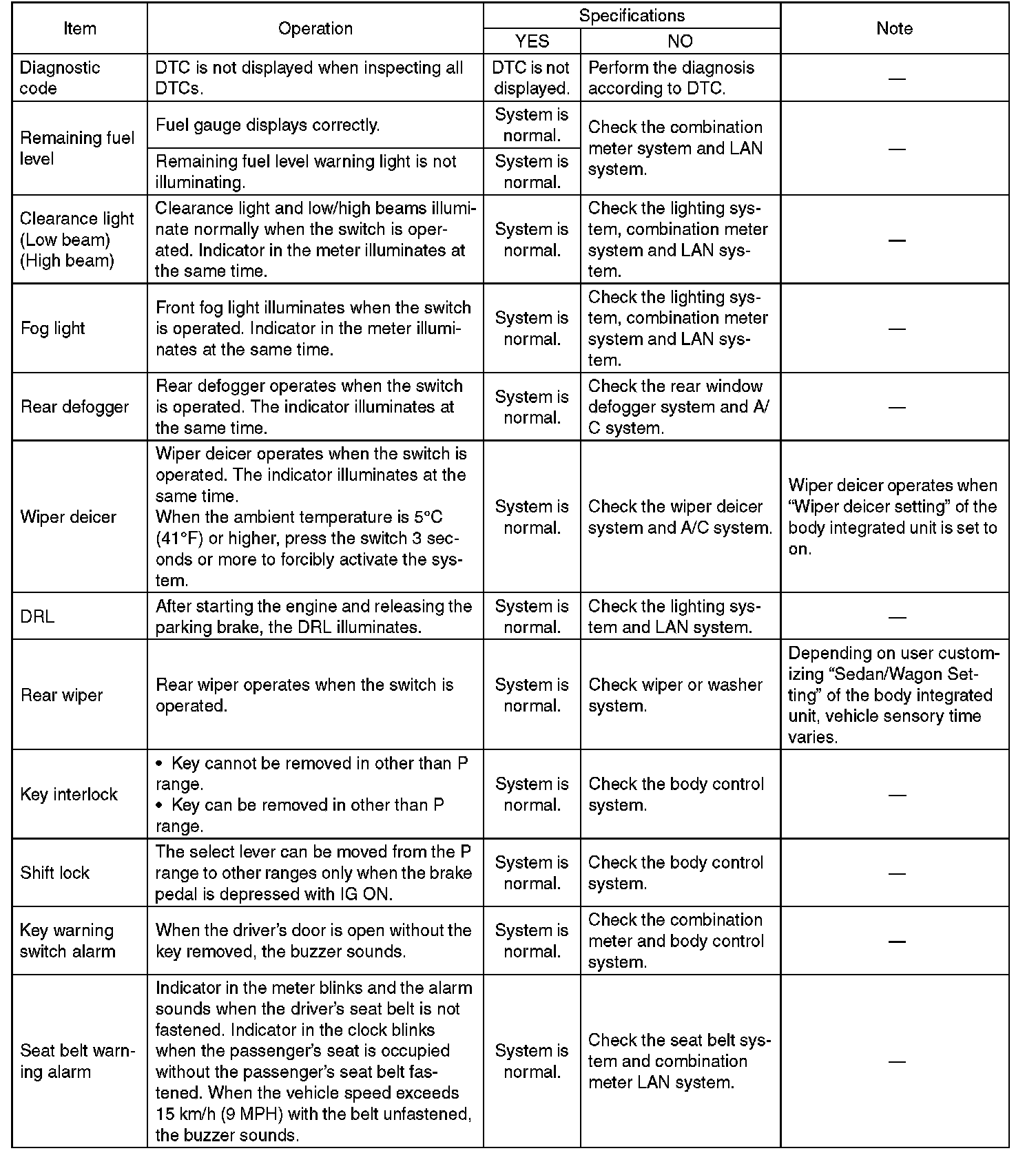

General Diagnostic Table
INSPECTION
Using the Subaru Select Monitor, read DTC, or check the following data on the current data display to make judgments.
