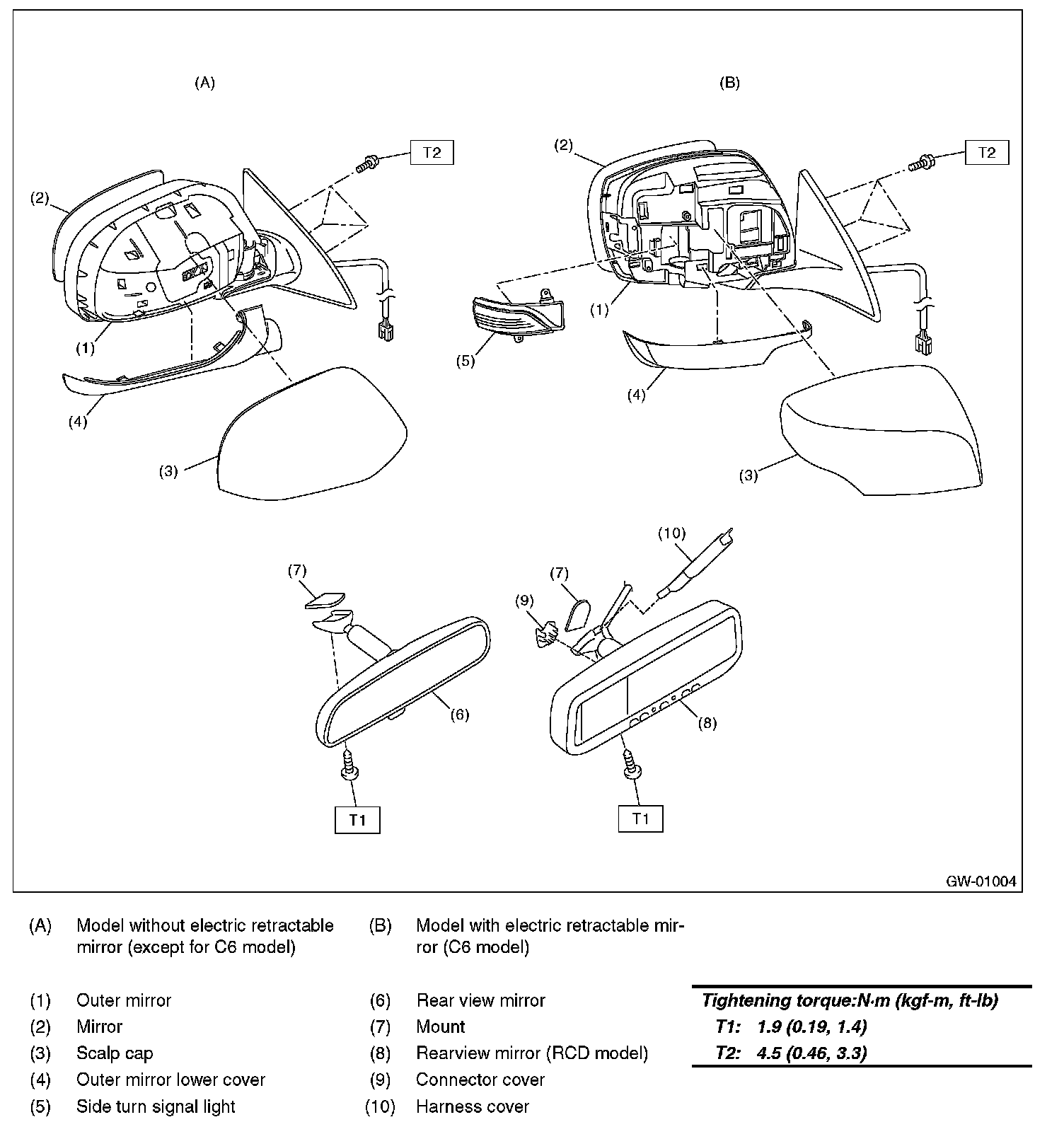

Outer Mirror Assembly

Outer Mirror Assembly







REMOVAL

1. Remove the front door trim.

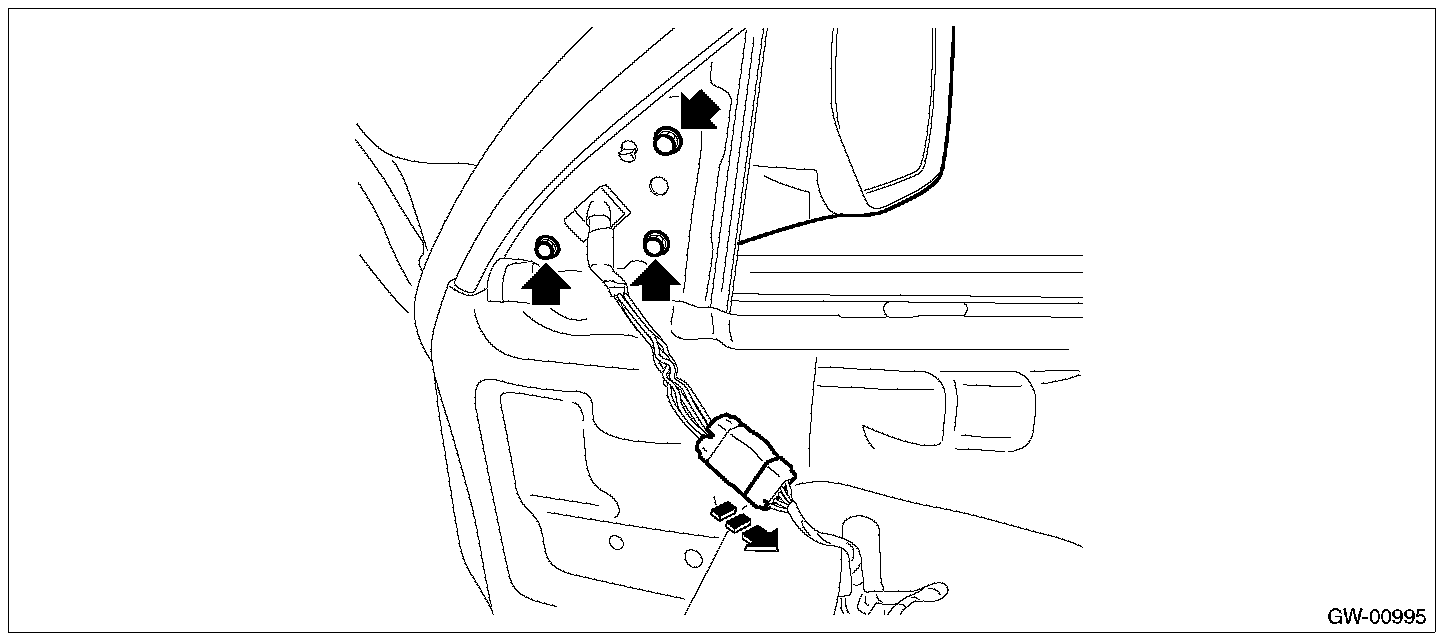

2. Remove the outer mirror assembly.
1. Disconnect the connector.
2. Remove the bolts to remove outer mirror assembly.







INSTALLATION

Install each part in the reverse order of removal.

Tightening torque:
Outer mirror assembly: 4.5 N.m (0.46 kgf-m, 3.3 ft-lb).
