Seats: Testing and Inspection

INSPECTION

1. WIRING DIAGRAM

Refer to Power Seat System in the wiring diagram. [Ref. to, WIRING DIAGRAM, Power Seat System.] Diagrams

2. TROUBLE SYMPTOM







3. CHECK POWER SEAT SWITCH
Measure resistance between terminals while operating each switch.







- Driver's seat







- Passenger's seat







Replace the switch if the inspection result is not within the standard value.

4. CHECK LUMBAR SWITCH
Measure resistance between terminals while operating each switch.







Replace the switch if the inspection result is not within the standard value.

5. ALL FUNCTIONS DO NOT OPERATE

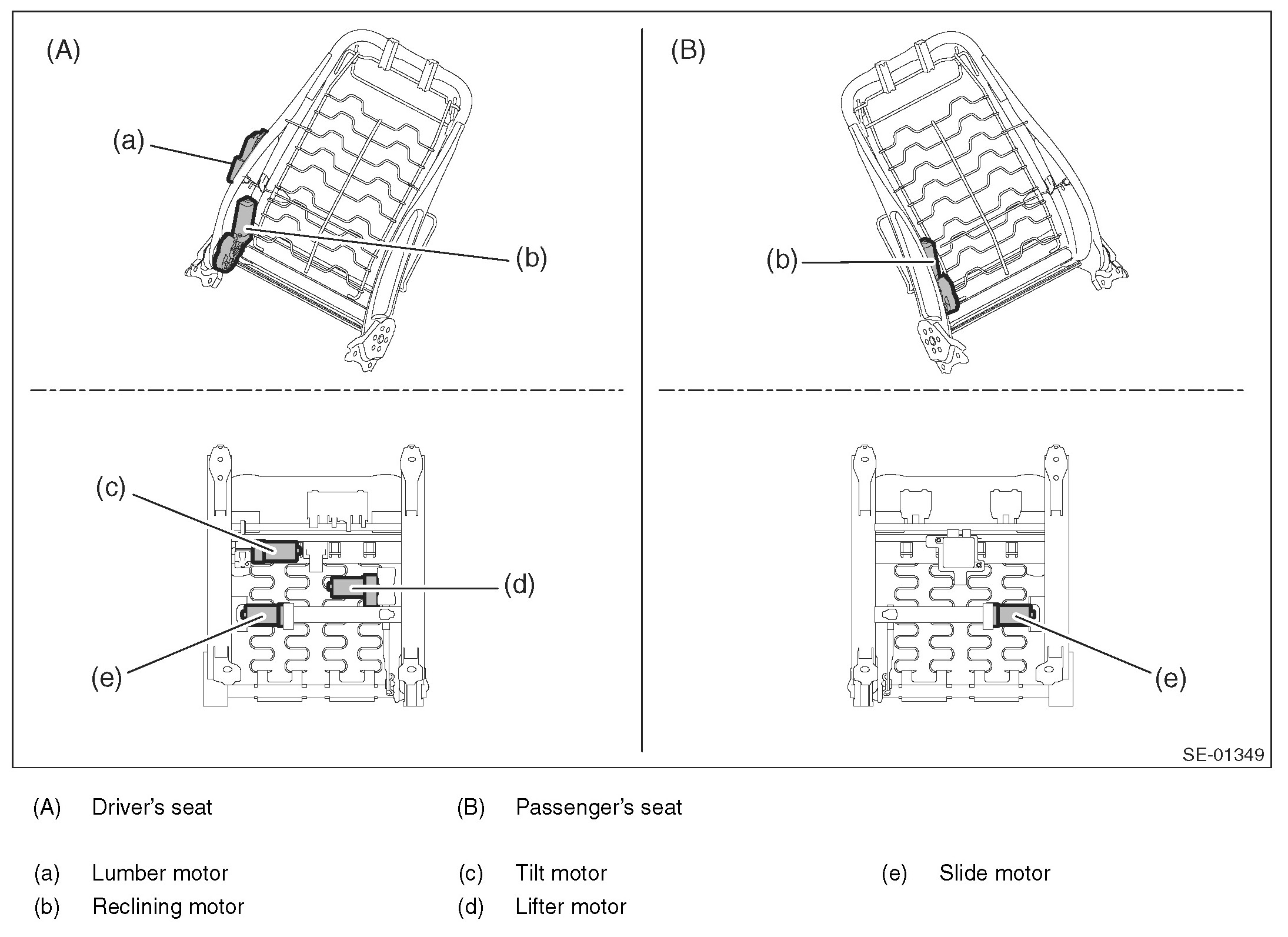

6. SOME MOTORS DO NOT OPERATE

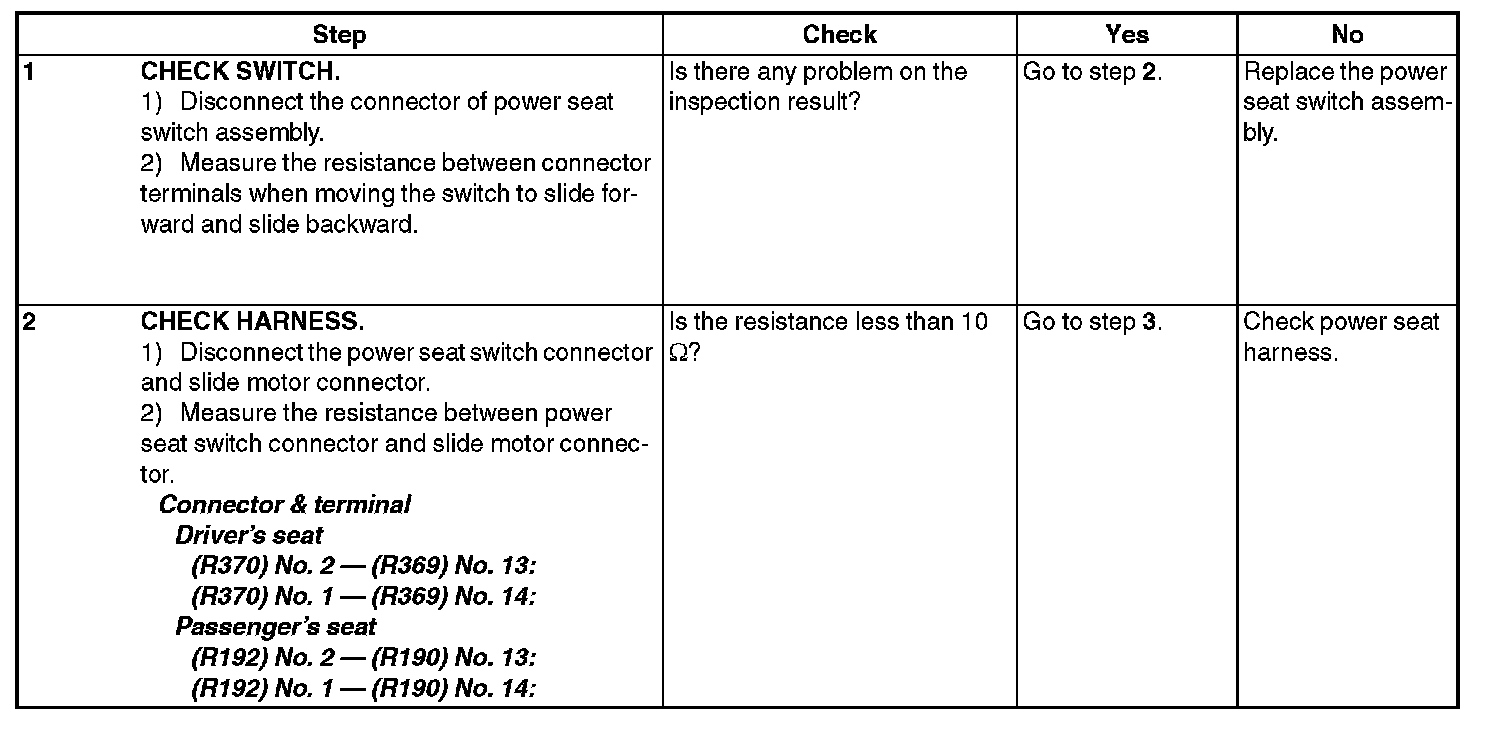

- Slide operation failure

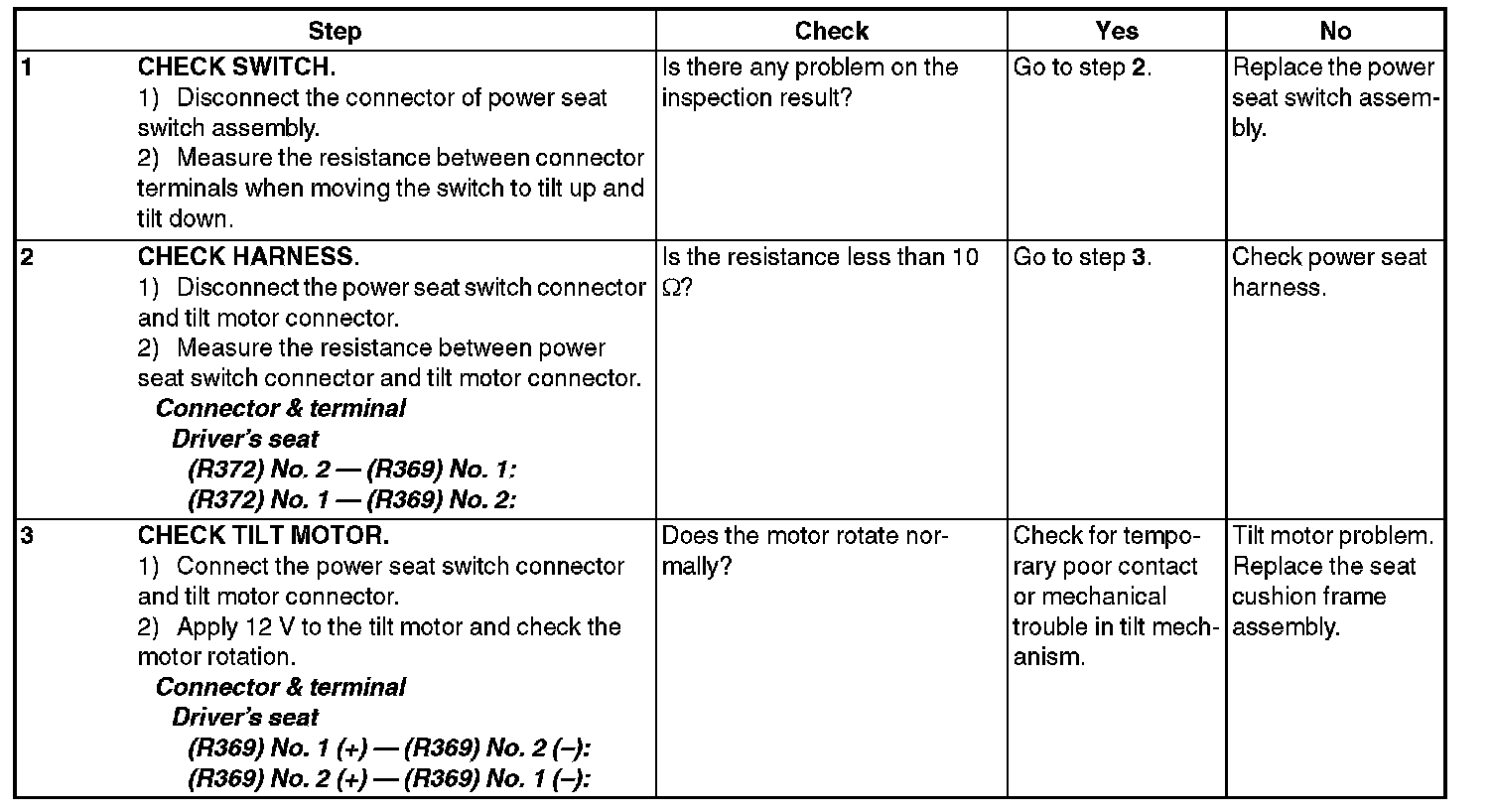

- Malfunction of tilt operation

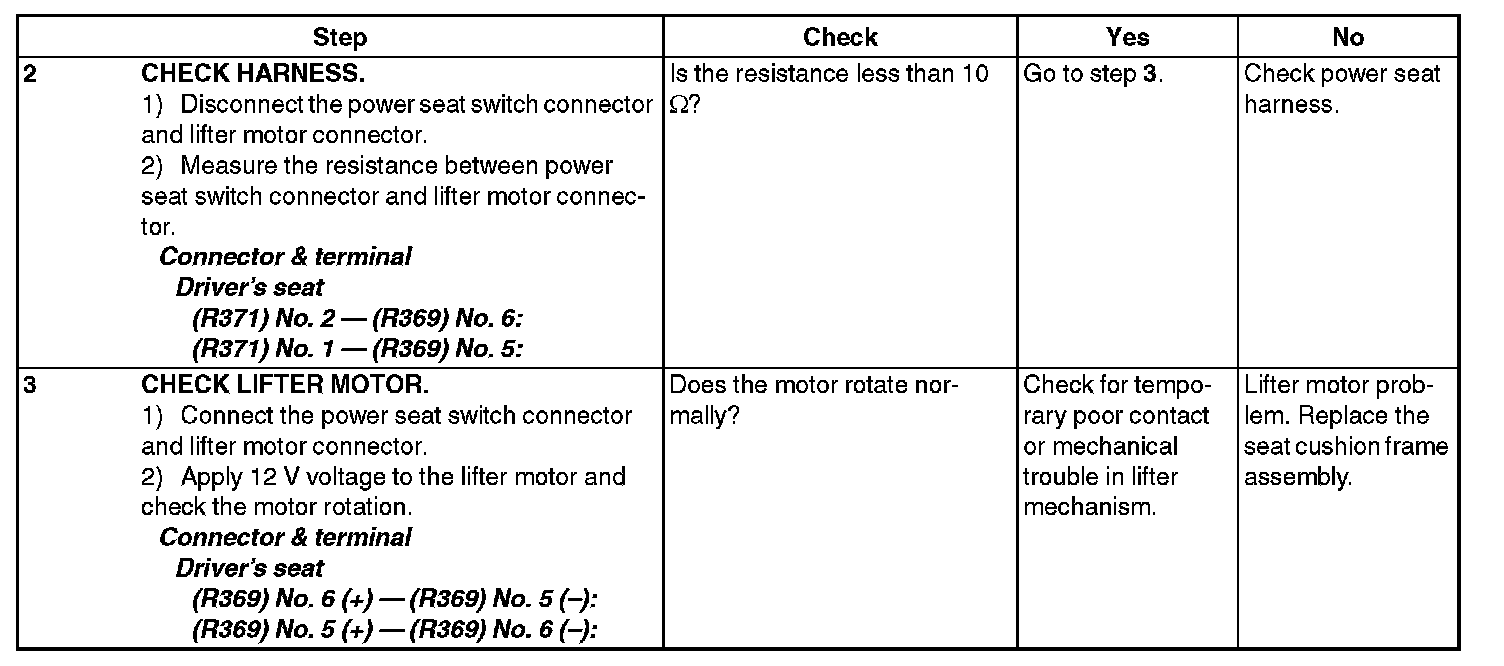

- Malfunction of lifter operation

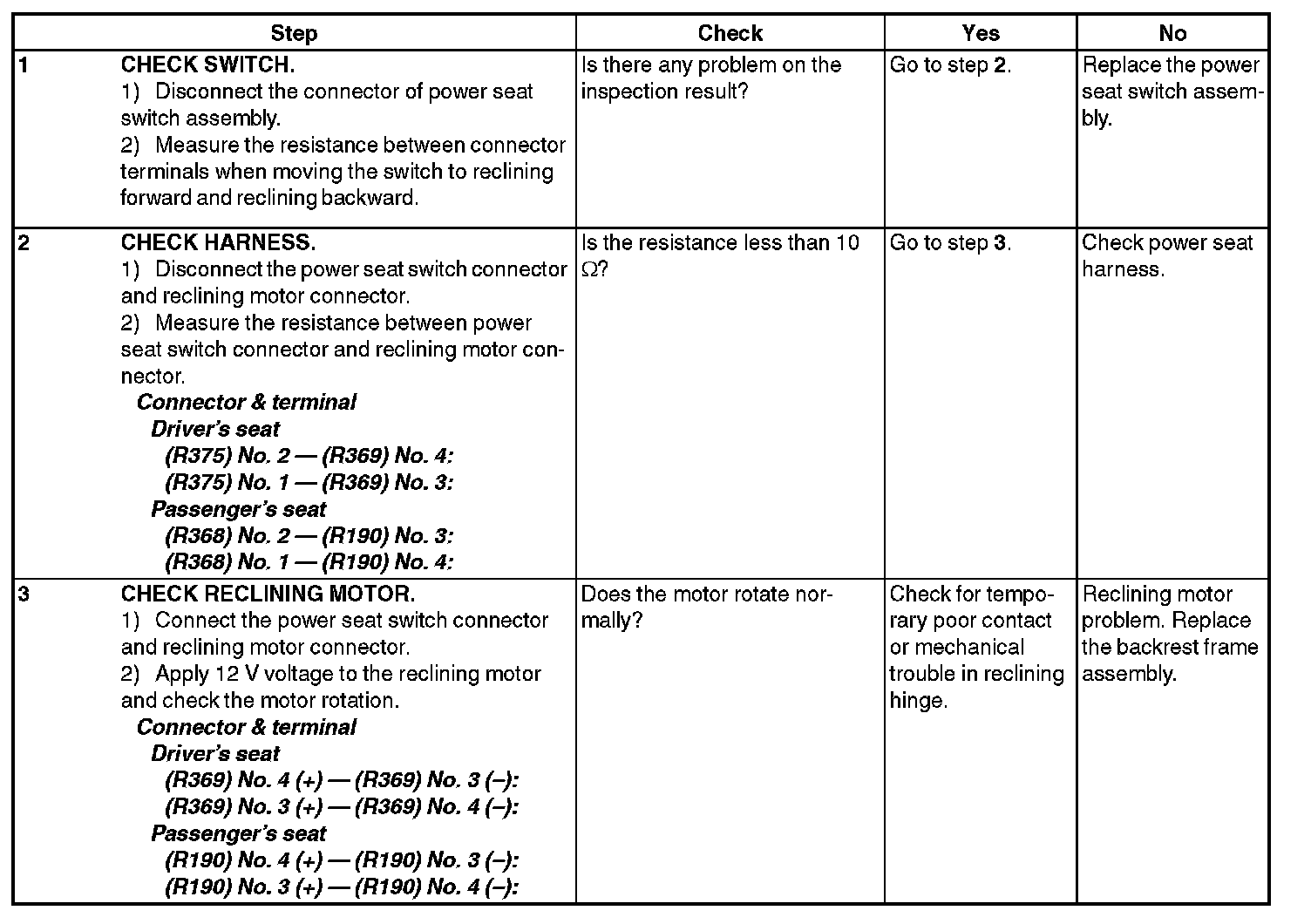

- Malfunction of reclining operation

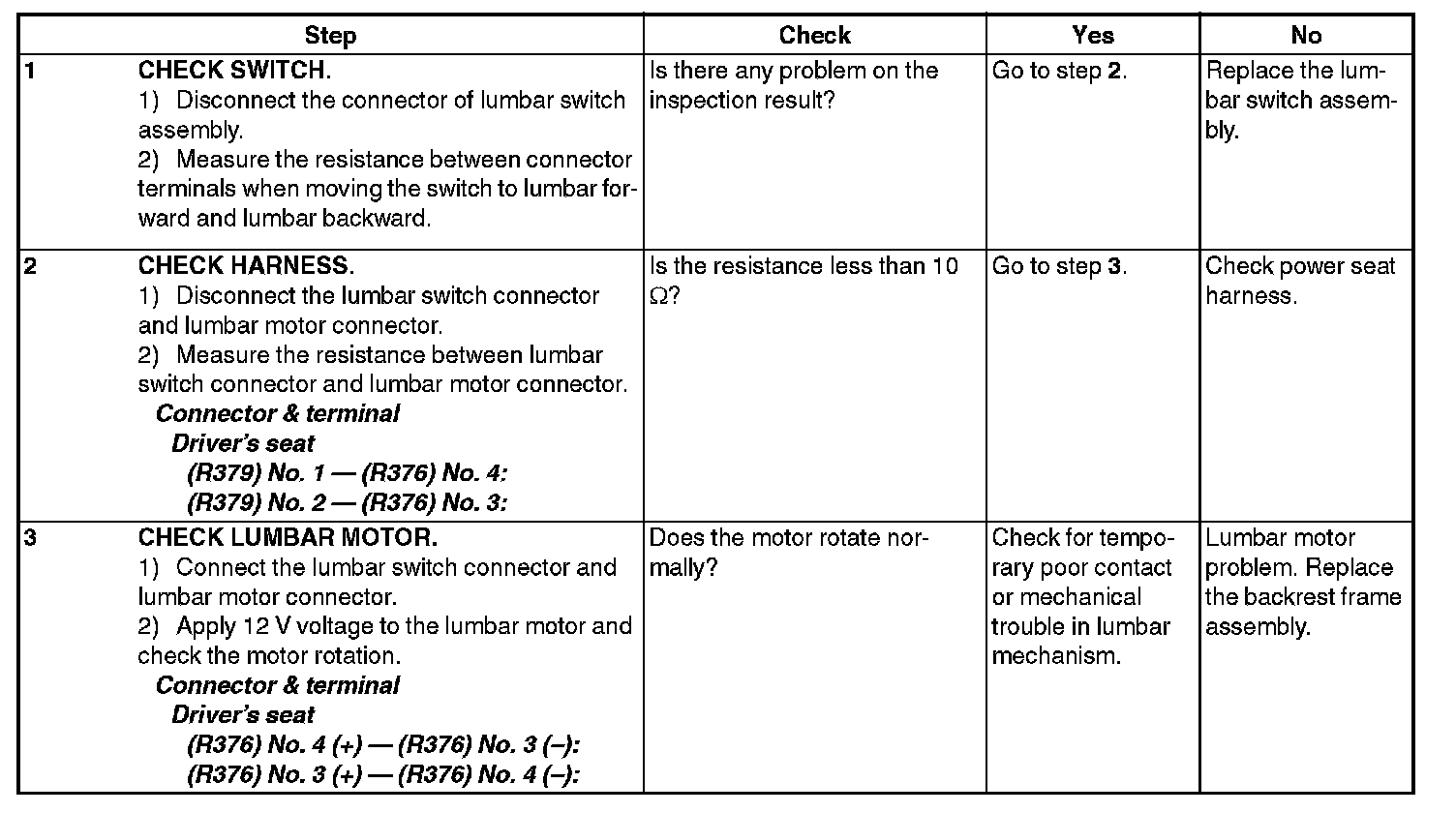

- Malfunction of lumbar operation
