Seat Belt Systems

General Description

COMPONENT

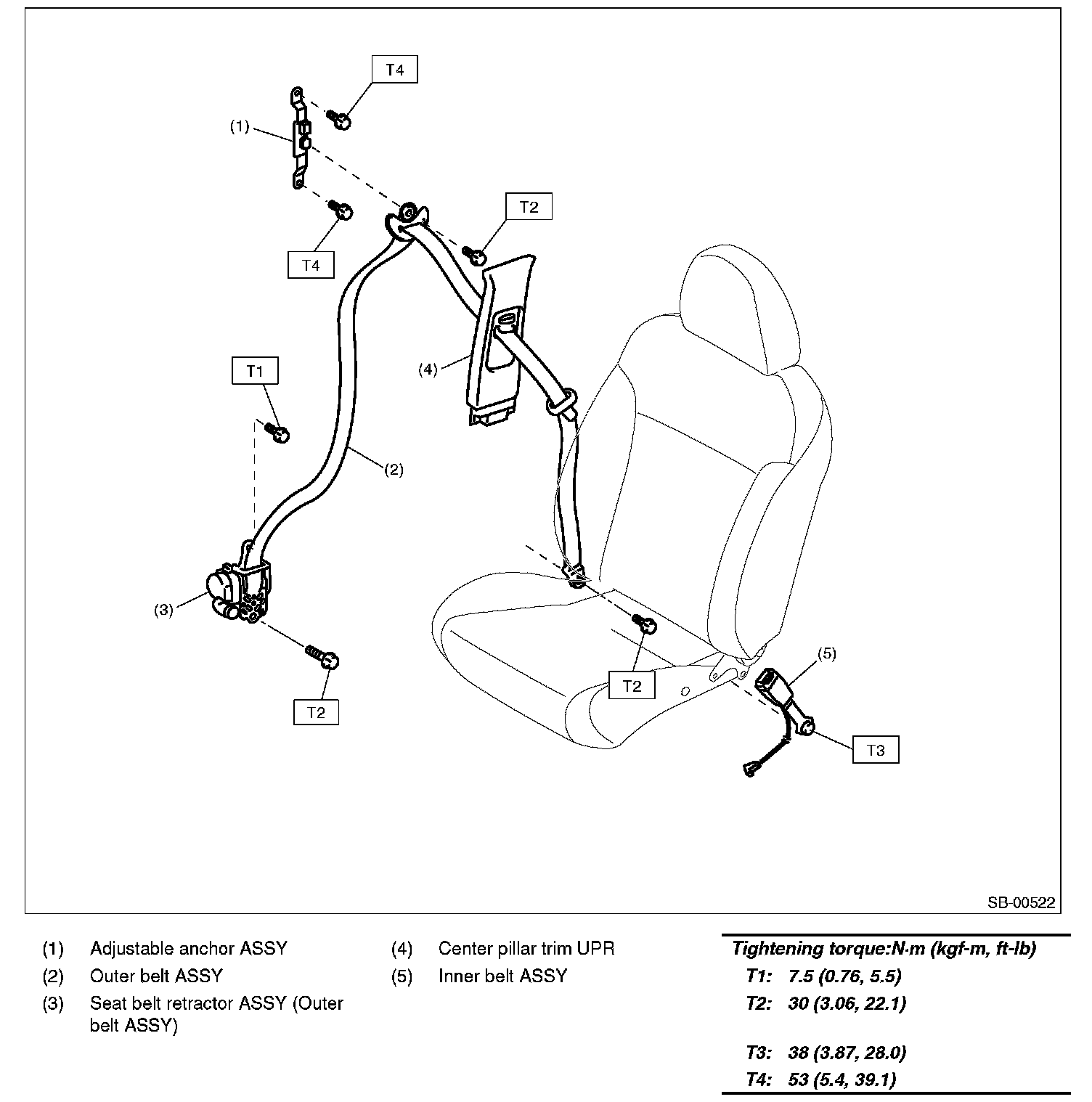

1. FRONT SEAT BELT

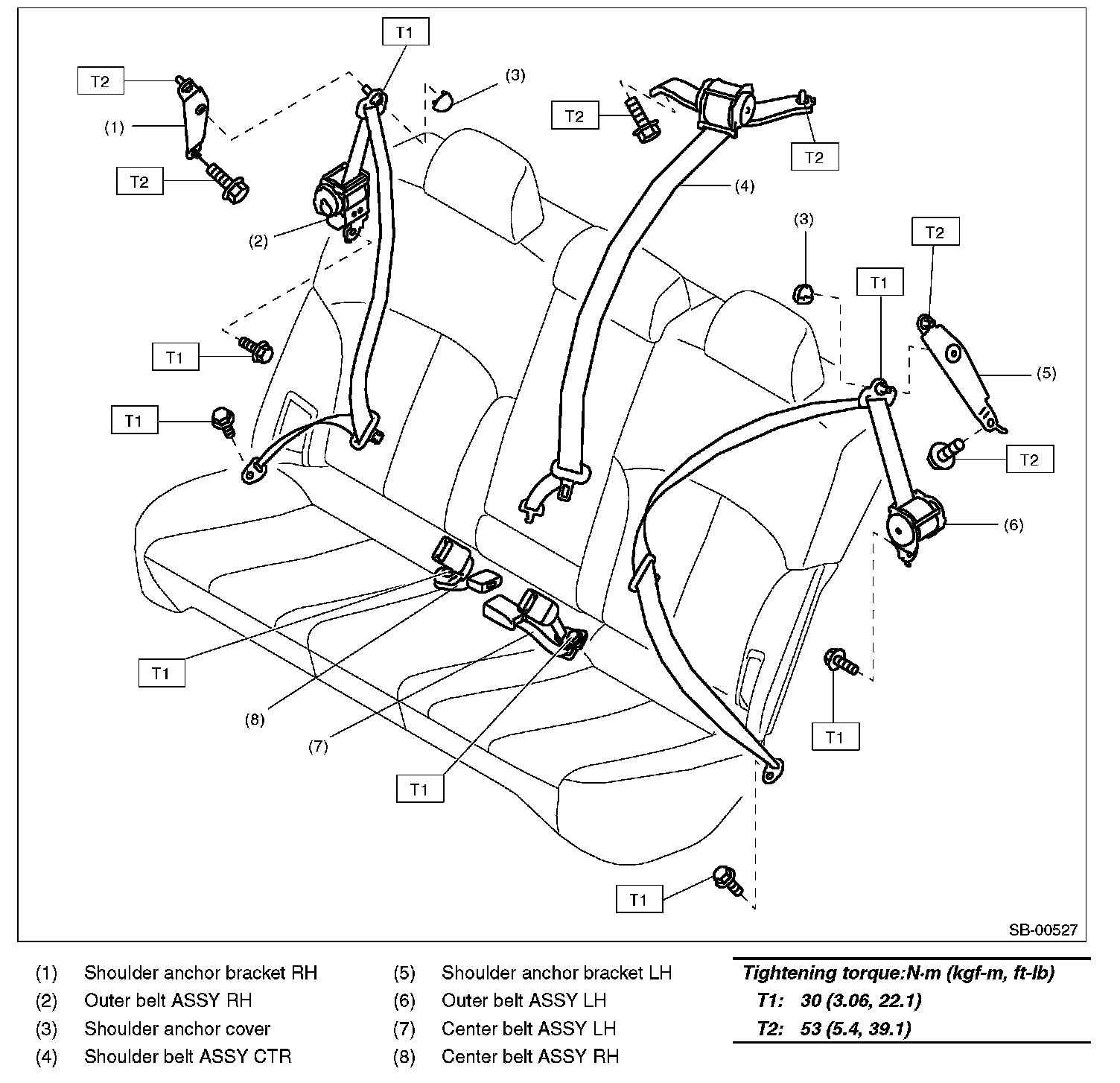

2. REAR SEAT BELT (SEDAN MODEL)

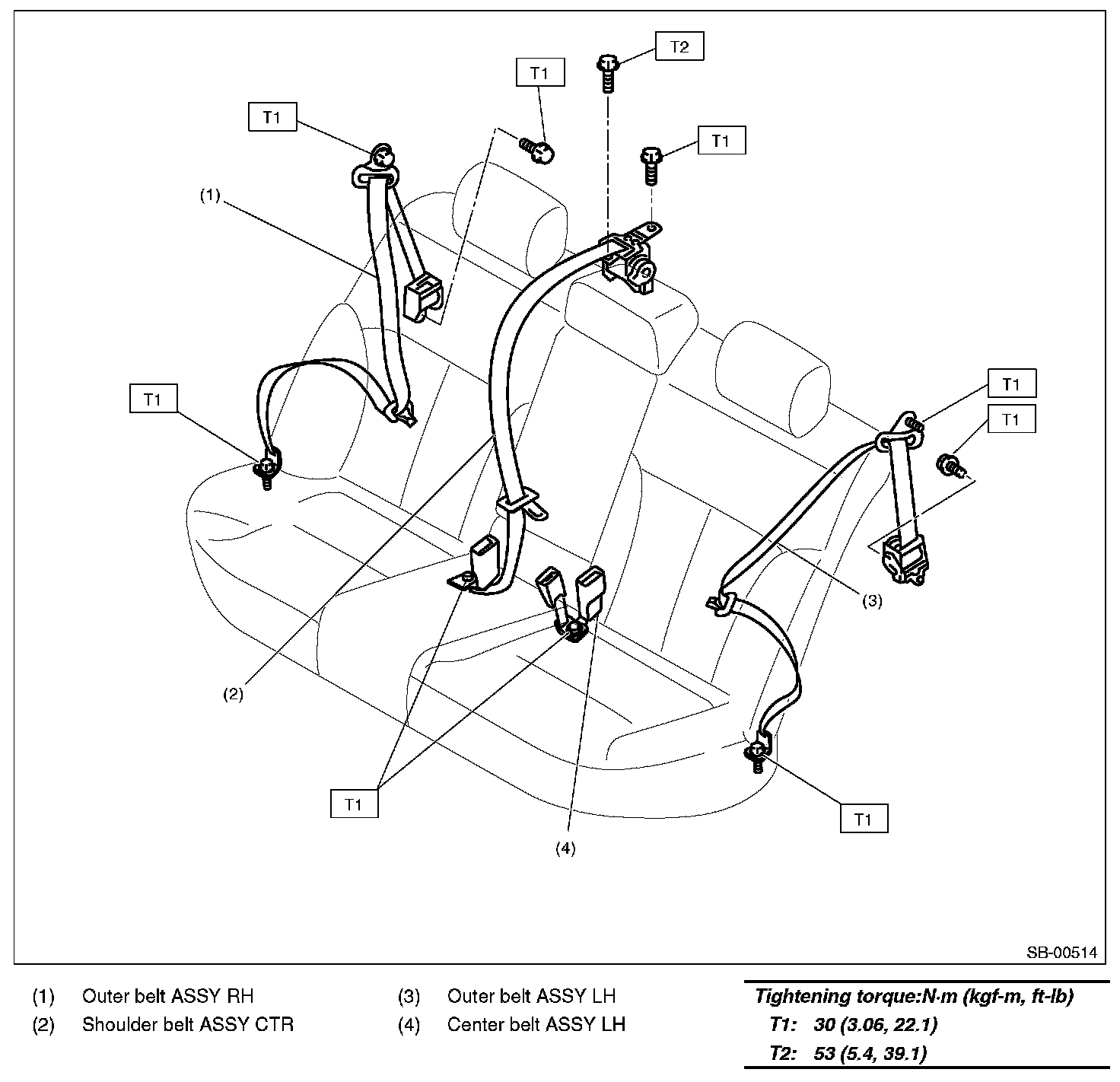

3. REAR SEAT BELT (OUTBACK MODEL)
