Control Assembly: Testing and Inspection

CONTROL PANEL

INSPECTION

1. CHECK ILLUMINATION

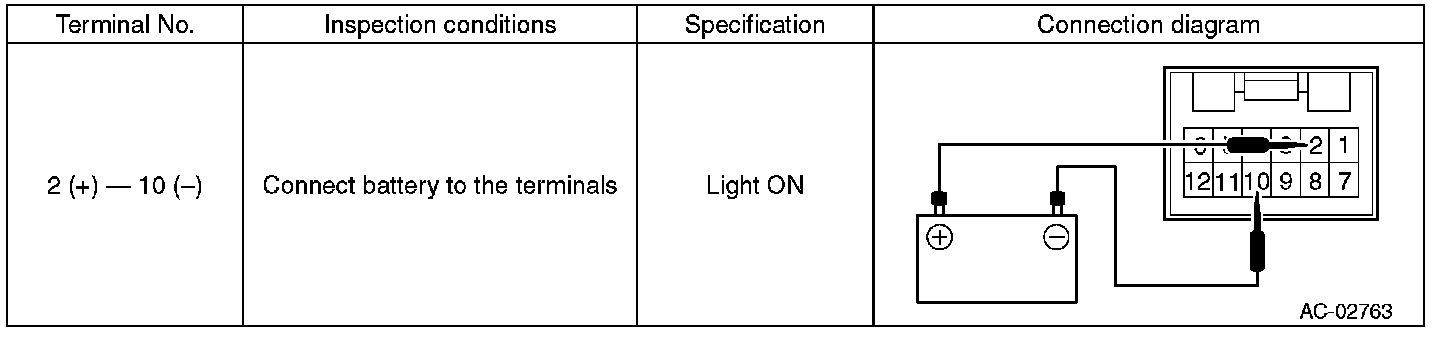

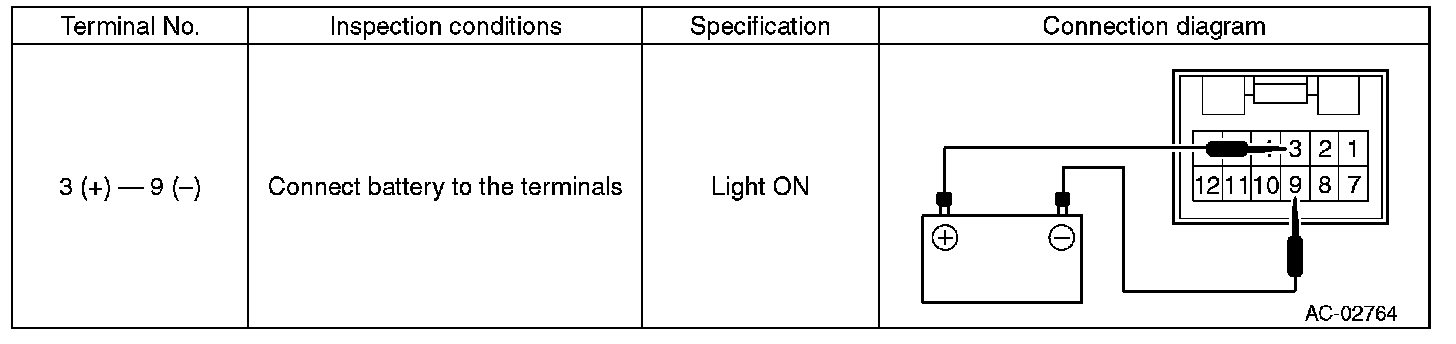

1. Check the illumination operation when battery voltage is applied between the terminals of control panel.

- Auto A/C model






- Manual A/C model






2. If the illumination does not operate normally, replace the control panel.

2. BLOWER SWITCH (MANUAL A/C MODEL)

Preparation tool: Circuit tester

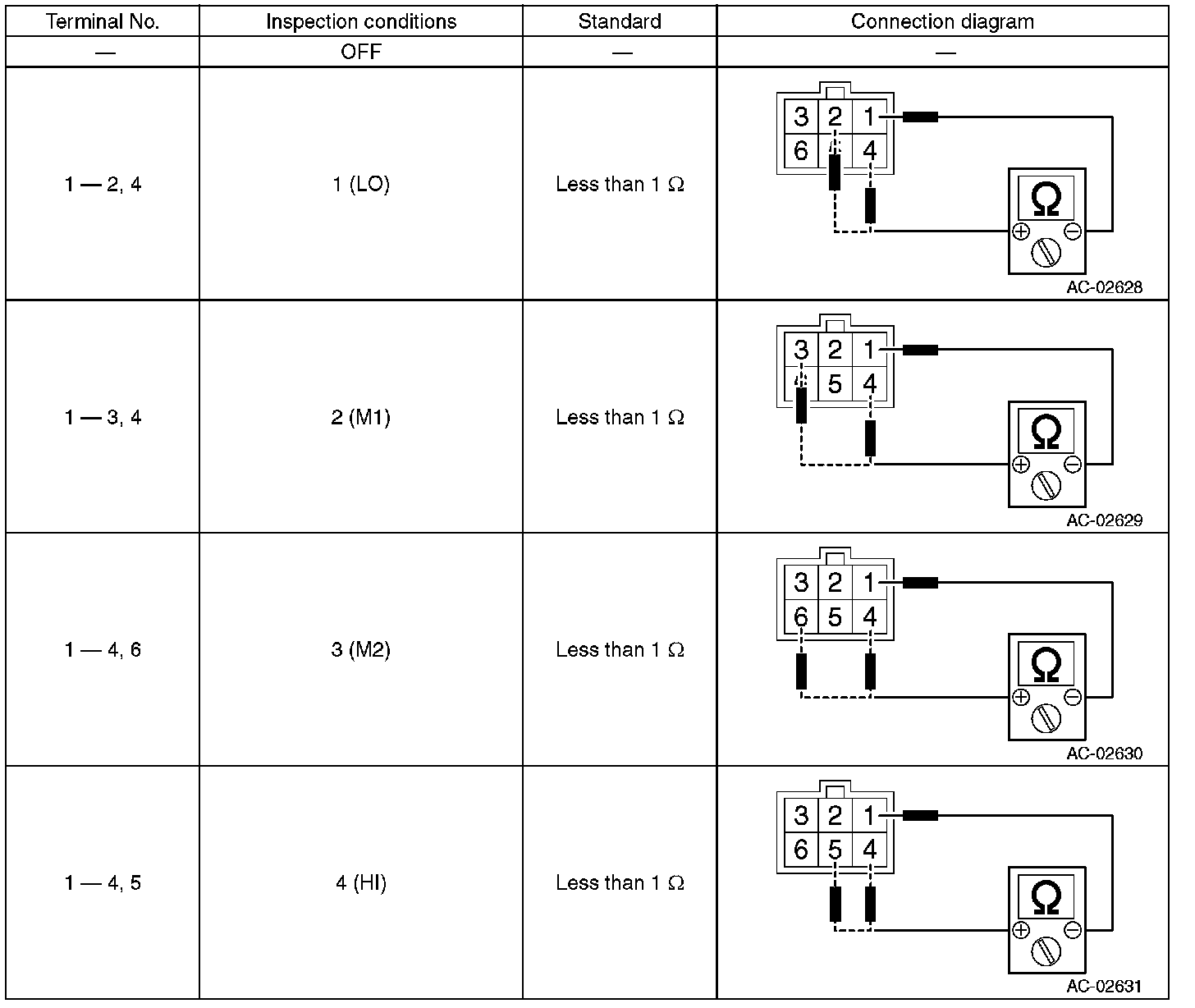

1. Check the resistance between terminals of the control panel.






2. Replace the control panel if the inspection result is not within the standard value.
