R9-R387 & AB17-AB61

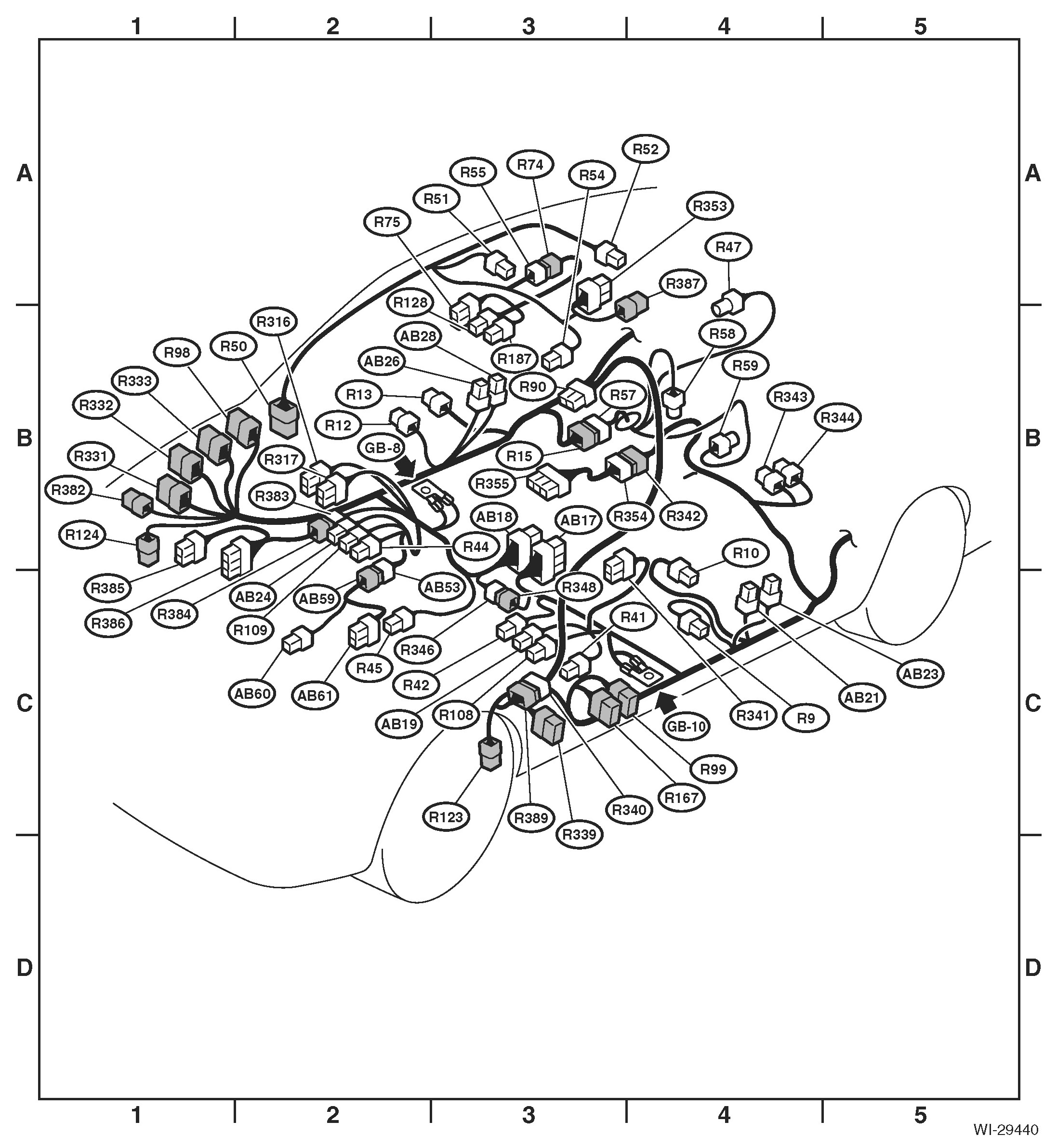

REAR WIRING HARNESS

OUTBACK MODEL

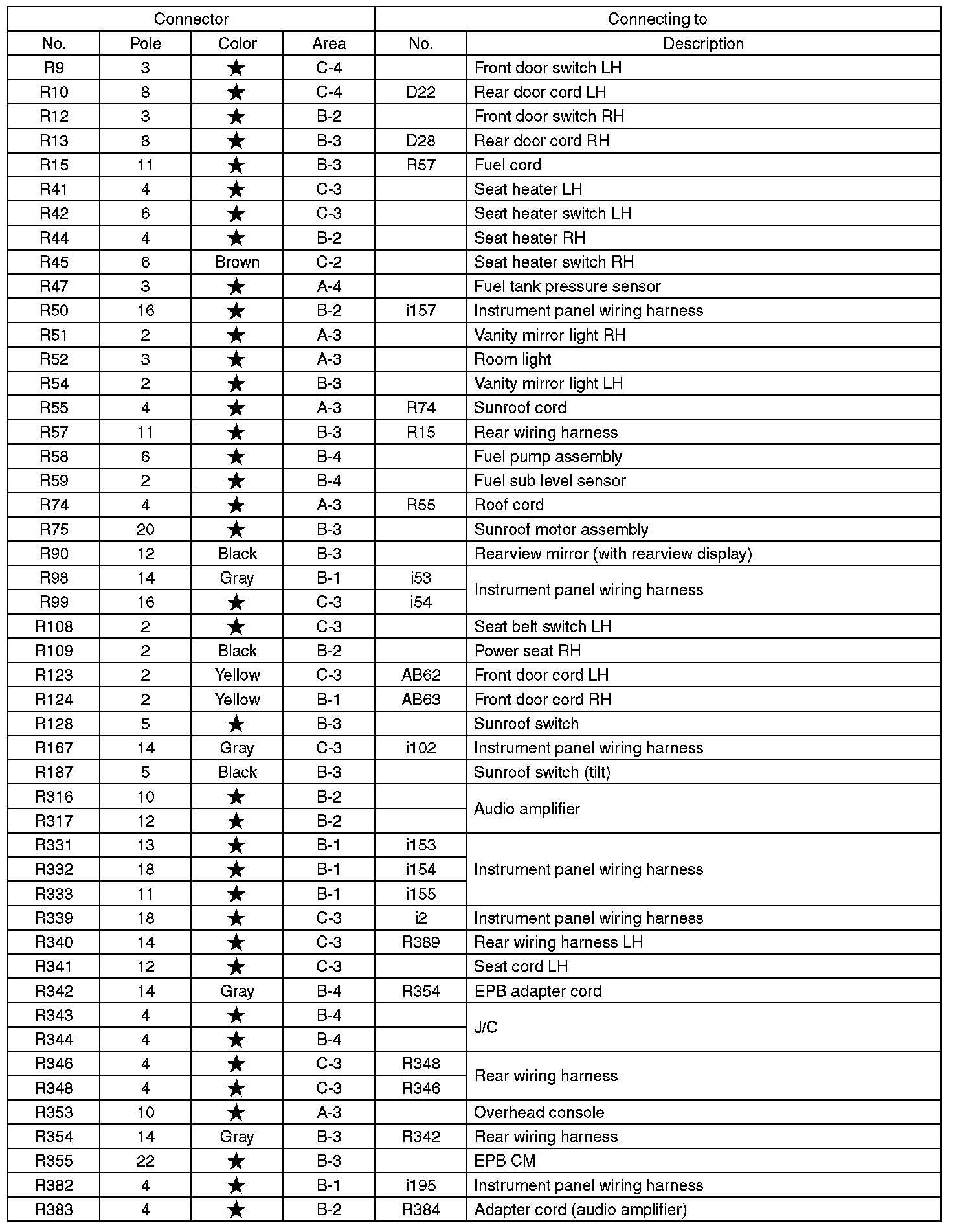

Vehicle identification number: OUTBACK model 200013 or later

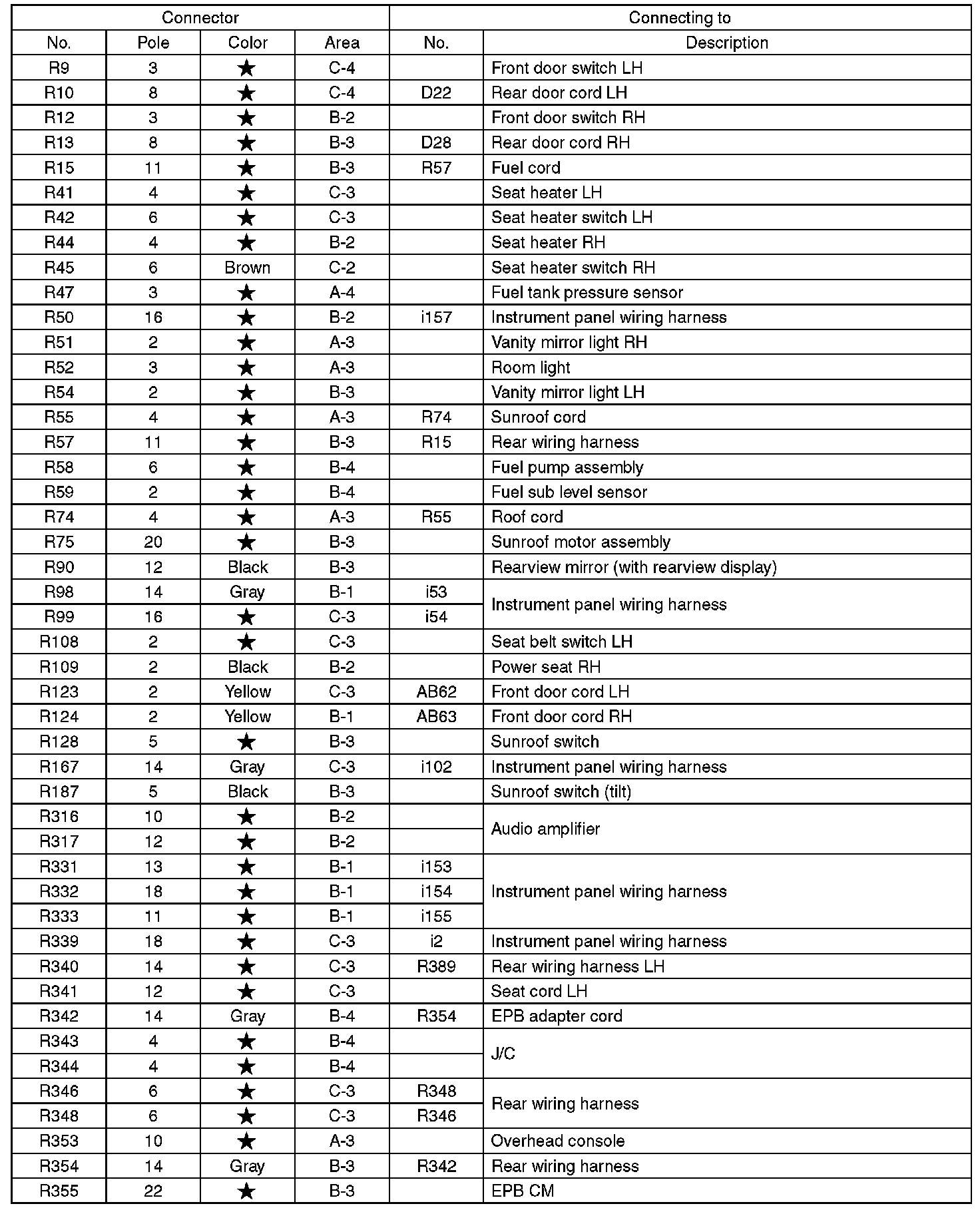

Vehicle identification number: OUTBACK model 200012 or older
