Main Relay (Computer/Fuel System): Service and Repair

Main Relay

REMOVAL

1. Disconnect the ground cable from battery.






2. Remove the glove box lid assembly.

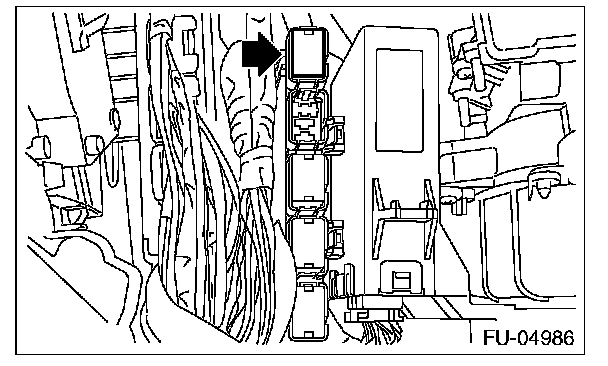

3. Remove the main relay from the relay holder.






INSTALLATION

Install in the reverse order of removal.
