Combination Meter System
Combination Meter System
ELECTRICAL SPECIFICATION

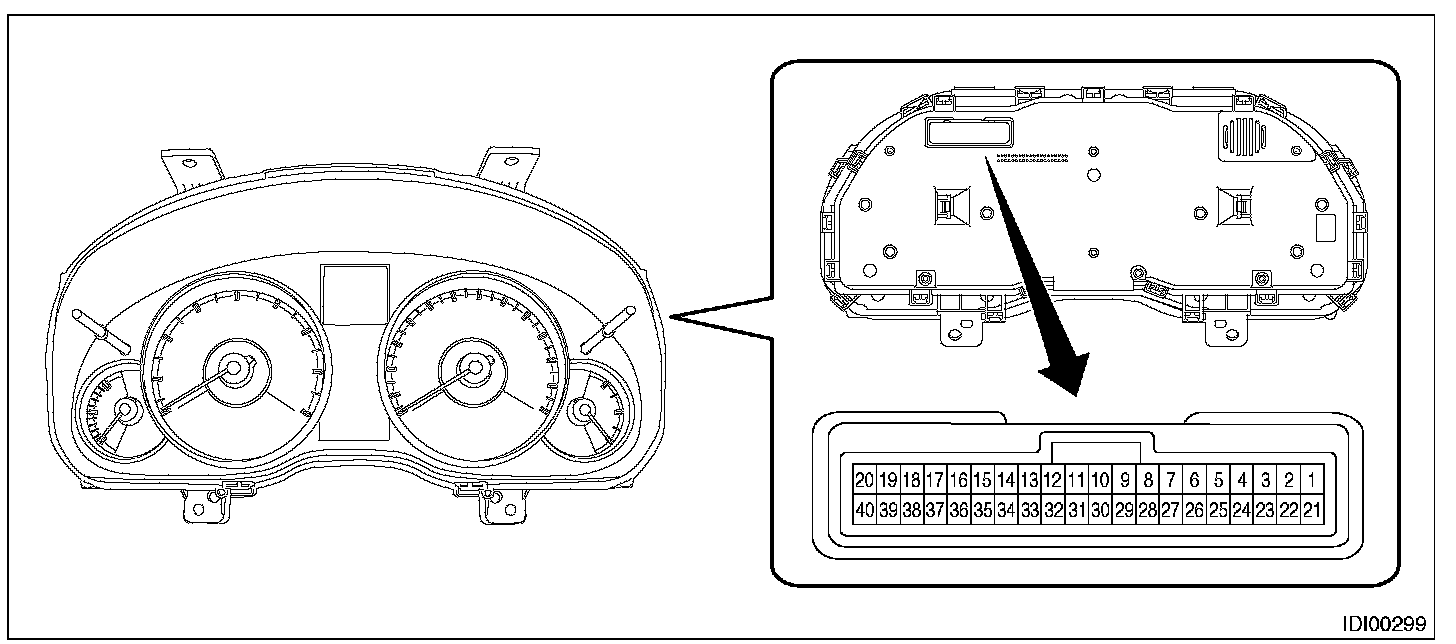

COMBINATION METER TERMINAL ARRANGEMENT

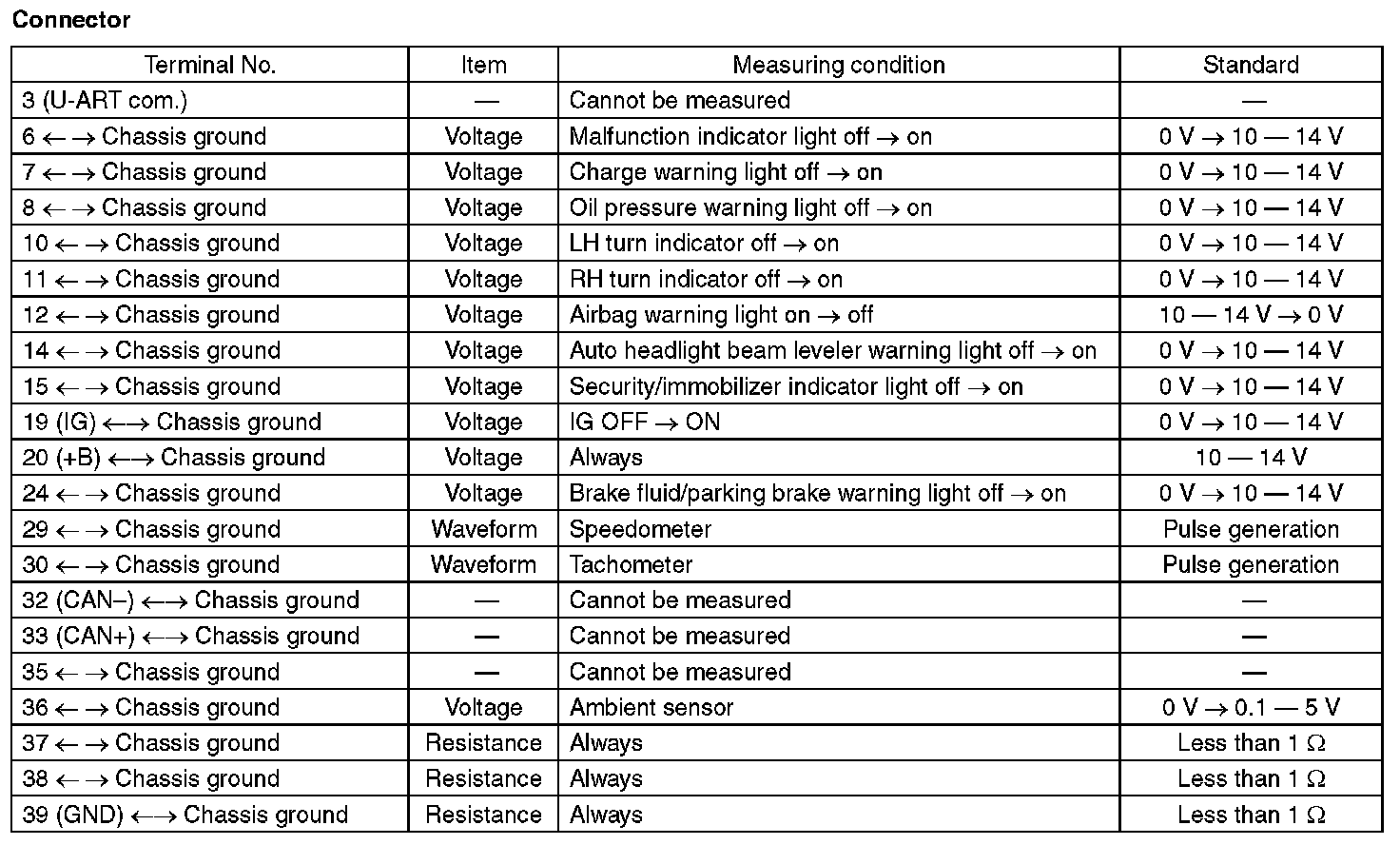

Connector
