Intake Manifold

INTAKE MANIFOLD

Tightening torque:

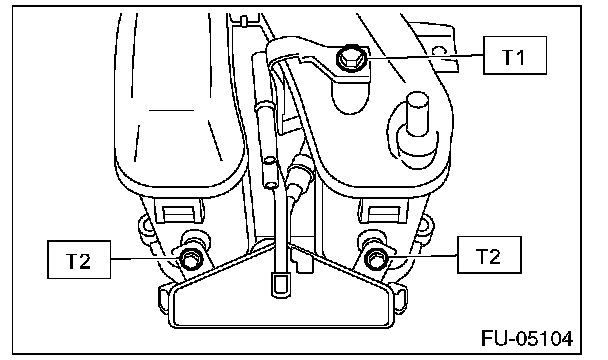

T1 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

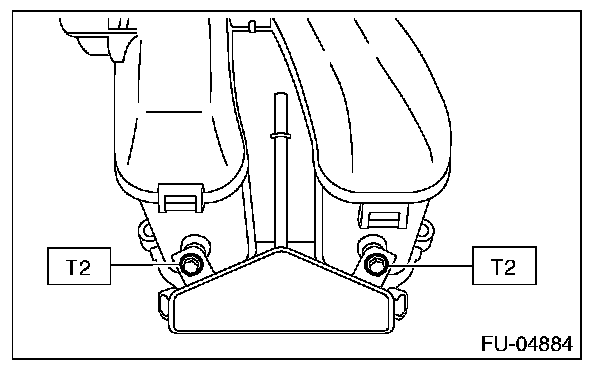

T2 19 N.m (1.9 kgf-m, 14.0 ft-lb)

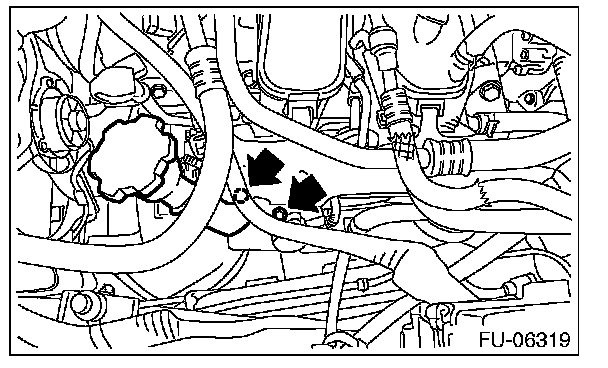

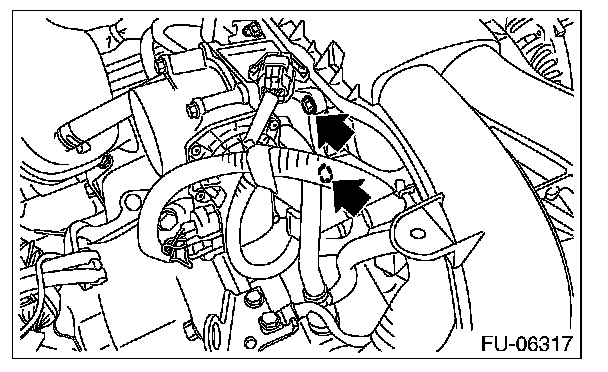

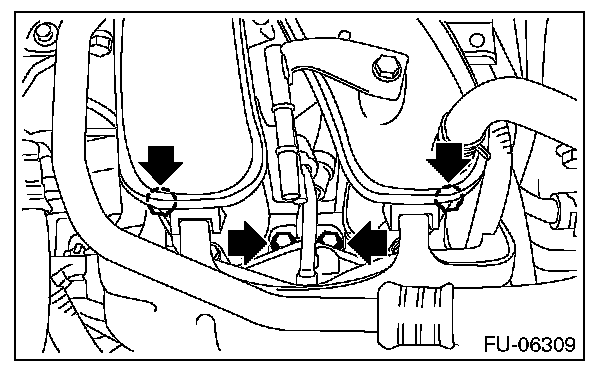

Tightening torque 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

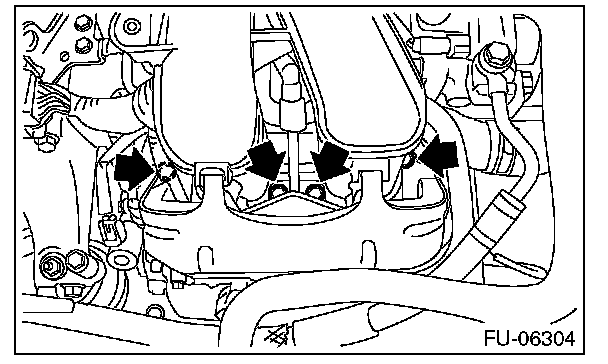

Tightening torque 25 N.m (2.5 kgf-m, 18.4 ft-lb)

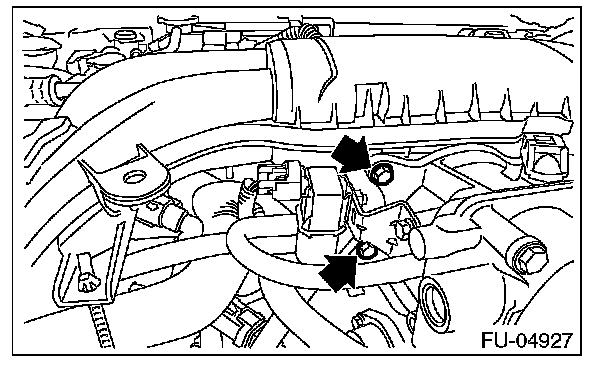

Tightening torque 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

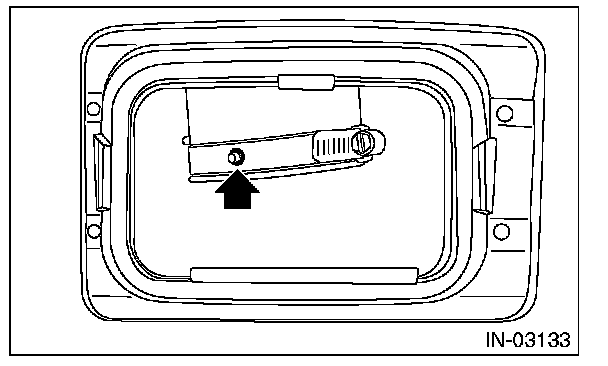

NOTE: Align the clamp hole with the protrusion of the air intake boot assembly.

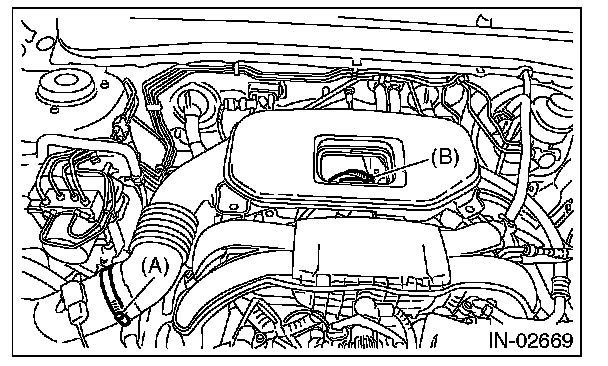

Tightening torque Clamp (A), (B) 3 N.m (0.3 kgf-m, 2.2 ft-lb)
